Description

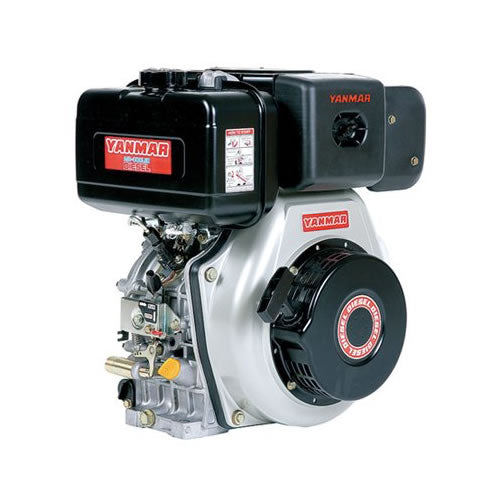

Yanmar’s new L-N Series of compact air cooled diesel engines exceed both power and environmental expectations. Keeping with the tradition of compact design, the new L-N series are simple to install. It fits in cramped space without sacrificing power and performance. Easy installation, effortless starts and incredibly low fuel consumption make the Yanmar L-N series a smart choice for compact diesel power. Designed with Yanmar’s proprietary direct injection technology, the L-N Series delivers frugal diesel consumption through a world-first miniaturised fuel injection system, low vibration and noise by utilising precision engine balancers plus quick and easy to start thanks to a standard recoil starter. The design, structure and materials of L-N combine to form a rugged, hard working machine. Durability is assured with tough, yet lightweight alloys used for main engine parts plus an extra tough crankshaft ensures torque is always on demand.



Key Features

  • L48N with Manual Start
  • Compact, Direct Injection Technology
  • Quick and Easy Start
  • A little engine built to stand up to hard worker
  • Fast, effortless starts from a one-pull recoil starter
  • Recoil Start w/ Automatic Compression release
  • Automotive Air Filter Design
  • Super Lo-Tone Muffler
  • Compact Design
  • Durability
  • 332mm x 384 x 417 (LxWxH)
  • Speed Options N5(3000rpm) or N6(3600rpm)

Downloads

    Specifications

    Engine Series

    Yanmar LN Series

    Engine Style

    Horizontal

    Cylinders

    1

    Engine Type

    Diesel

    Cooling System

    Air

    Dry Weight

    27 kgs

    Engine HP

    4.7hp

    Bore

    70mm

    Stroke

    57mm

    Starting System

    Recoil start

    Oil Filter

    Yes - Washable

    Muffler

    Included

    Air Cleaner

    Dual Element

    Fuel Tank

    2.4 Litres

    Crankshaft Rotation

    Counterclockwise

    Crankshaft Type

    Straight Keyway

    Crankshaft Diameter

    3/4 Inch (19ml)

    Crankshaft Length

    58.3ml

    Continuous Rating Output

    3000rpm - 3.8hp / 3600 - 4.2hp

    Maximim Output

    3000rpm - 4.2hp / 3600 - 4.7hp

    Warranty

    2 Years

    Dimensions

    332mm x 384 x 417 (LxWxH)
