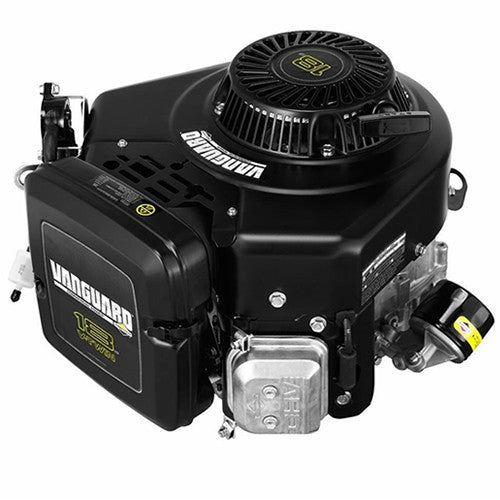

Vanguard 18HP V-Twin Vertical Shaft Petrol Engine
Description
This 18hp Vanguard vertical shaft petrol engine is design-engineered to dependably take on the most demanding commercial applications. Energetic and quick starting, this powerhouse features a number of advanced technologies and integrated components that are proven to elevate the reliability standard, which helps hardworking people get a lot more done in less time.
Typical applications for this high performance Vanguard engine include :- Golf and Turf Equipment, Utility Vehicles, Commercial Mowers etc
Key Features
- Gross Horsepower of 18HP (570cc)
- Muffler not supplied
- Full Pressure Lubrication with Spin On Oil Filter
- Magnetron Ignition system
- Over Head Valve V-Twin Engine
- Crankshaft: 1 in. Dia x 3-5/32 in.
- Cast Iron Sleeve
- Electric Start with Back Up Recoil Starter
- Model Number - 356777
- 3 Year Warranty
- Integrated Fuel Pump
- High capacity Dual Clean Commercial Air Filter
Specifications
|
Engine Series |
Vanguard Series |
|
Engine Style |
Vertical |
|
Cylinders |
2 |
|
Engine Type |
4 Cycle OHV |
|
Cooling System |
Air |
|
Dry Weight |
74 Lbs |
|
Engine CC |
570cc |
|
Engine HP |
18hp |
|
Cylinder Bore Type |
Cast Iron |
|
Bore |
2.83 inches |
|
Stroke |
2.76 inches |
|
Starting System |
12 volt key start |
|
Ignition System |
Electronic Spark |
|
Oil Filter |
Yes |
|
Oil capacity |
48 oz |
|
Muffler |
Not Included |
|
Air Cleaner |
Dual Element |
|
Fuel Tank |
Not Included |
|
Crankshaft Rotation |
Counterclockwise |
|

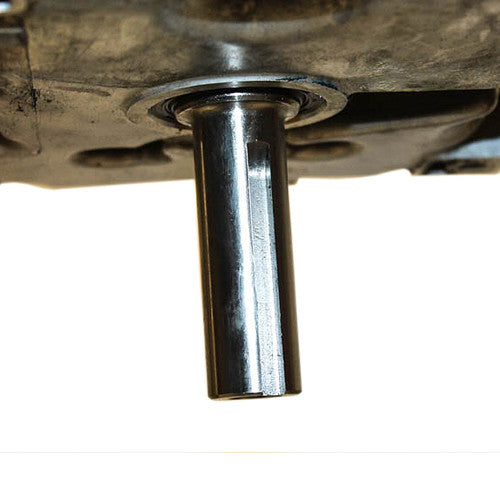

Shaft Size |
1 x 3-5/32 Inch |
|
Crankshaft Type |
Straight Keyway |
|
Crankshaft Diameter |
1 Inch |
|
Crankshaft Length |
3-5/32" |
|
Crankshaft End Tapped Size |
7/16-20 |
|
Crankshaft Keyway Width |
1/4 Inch |
|
Warranty |
3 Years |
|

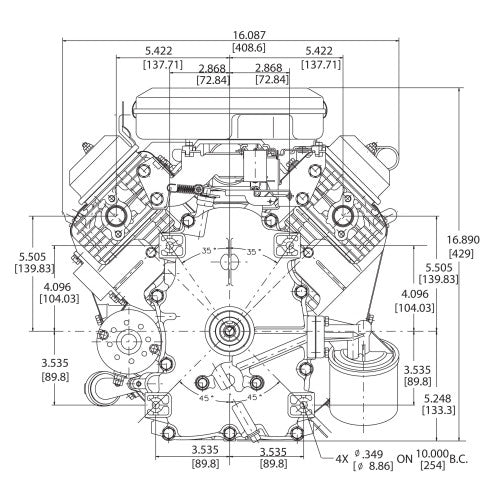

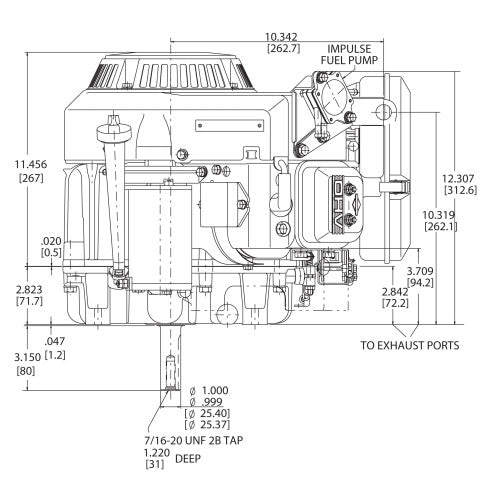

Dimensions |
|
