Kohler  |  SKU: CV224-3002

Kohler CV224 Command Pro Vertical Shaft Engine

Regular price $750.00

Replacement Engine Tips

Try to match the engine Horsepower (CC), Shaft Diameter & Length, Fuel Tank & Muffler location to the engine being replaced.

Delivery and Shipping

We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.

Seen it cheaper? Ask us for a Price Match Deal.

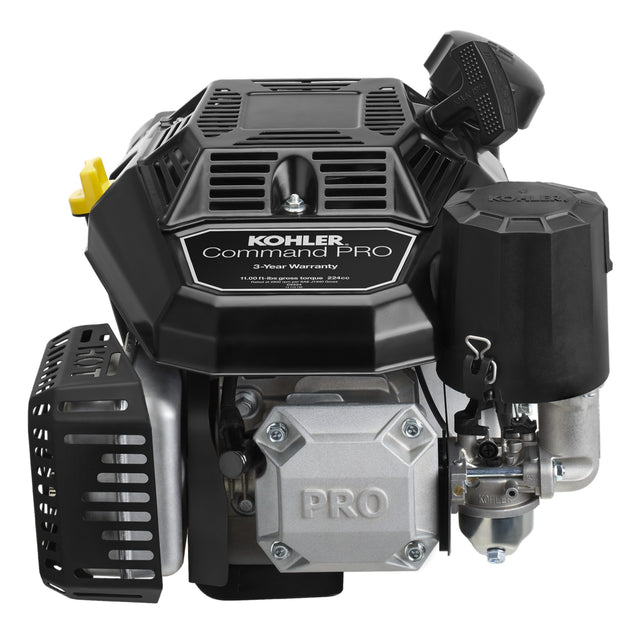

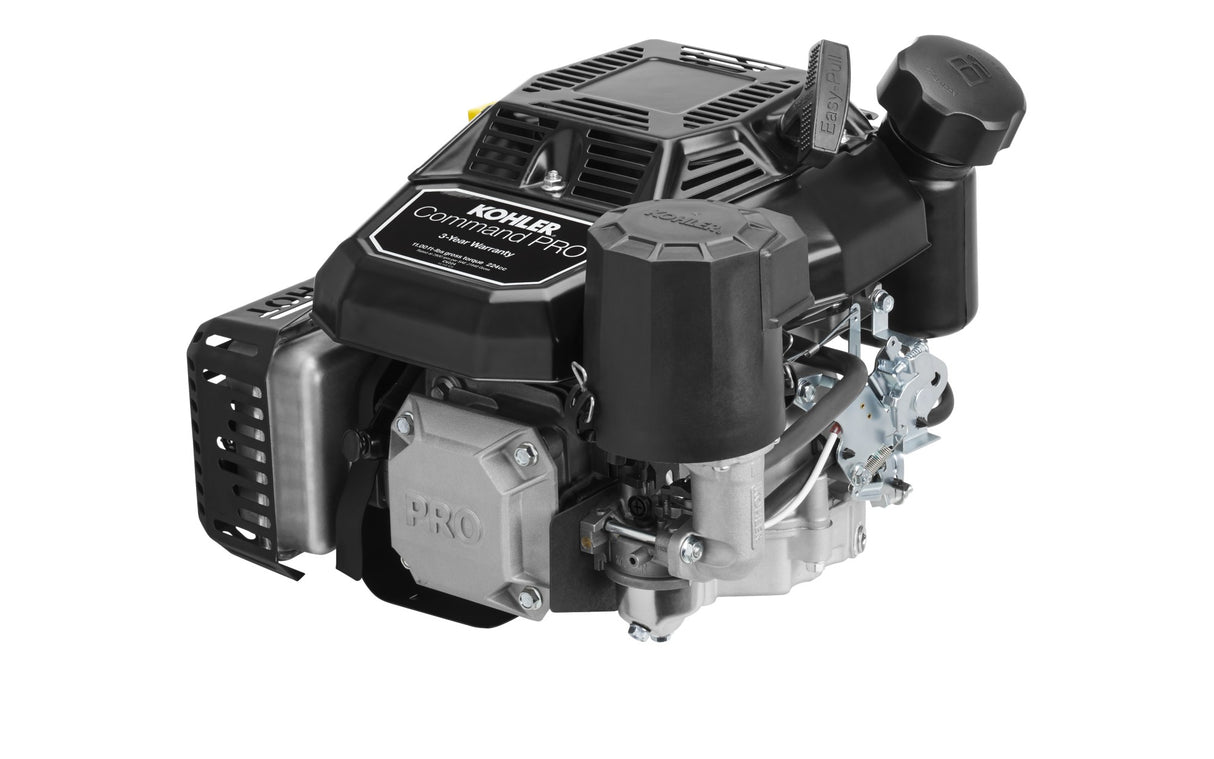

Kohler CV224-3002 Command PRO 11.0 TP 25mm x 3-5/32" w/ Oil Filter

One of the best-in-class for its power. The all-new Command PRO CV224 Kohler engine is the ultimate powerhouse for your walk-behind mower.

Heavy duty air-filtration, huge amount of torque and Kohlers Consistent-Cut tech you can ensure your walk behind has all the power it needs to produce the best finish.

Toro Timemaster Replacement -  Shaft - 25mm x 3-5/32" Tapped 7/16-20 - Heavy Flywheel

Features:
  • Torque output: 11.0 ft-lbs
  • 3-year limited commercial warranty
  • Enjoy effortless starts thanks to our Easy-Pull technology
  • Easy pours and less spilling with Accu-Fill® fuel tank's 45% larger angled fuel neck
  • Consistent-Cut technology maintains engine speed for a cleaner turf cut, even in tall, wet grass
  • Cast-iron cylinder liners add durability and engine protection
Displacement (cc): 13.7 (224)
Bore in (mm): 2.9 (73)
Stroke in (mm): 2.1 (53.5)
Gross Torque ft lbs (Nm) 1: 11 (14.9)
Compression Ratio: 9.2:1
Dry Weight lbs (kg): 37 (16.8)
Oil Capacity US qts (L): 0.625 (0.59)
Lubrication: Dual - Full Pressure & Splash
Dimensions LxWxH (in): 15.7 x 13.9 x 11.1
Backpressure Limit 2: 40
Emissions Compliance: 0=CARB Phase III, 1=EPA Phase III
Engine Type: Commercial
