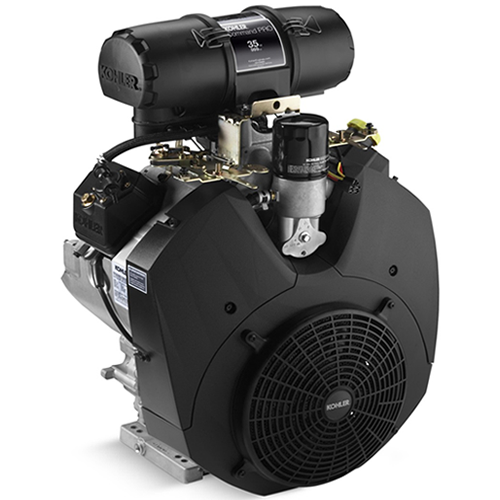

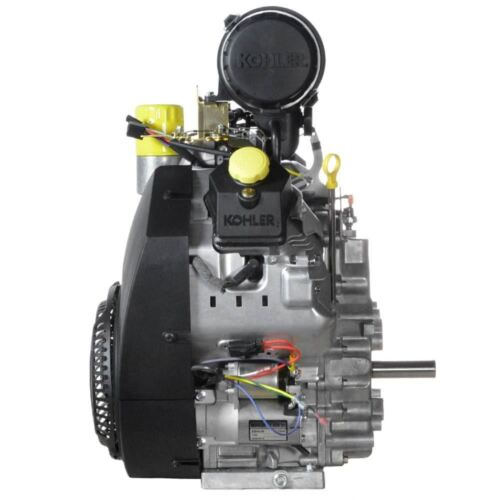

Kohler CH980 (35.0HP) V-Twin Petrol Engine with Heavy Duty Air Filter

The Kohler CH980 engine is designed for a wide range of commercial, residential, and industrial machinery. This powerful and compact motor comes with heavy duty electric start. This engine is lightweight with durable construction that includes 4 Stroke OHV V-Twin. In addition, this engine is backed by a 3 year commercial warranty. Kohler motors are perfect for a wide range of industrial and commercial applications. Use this durable motor as a replacement for older, worn-out motors, including those from Briggs & Stratton and other top brands. The Kohler CH980 engine has a heavy-duty construction that’s lightweight and fuel efficient with all the power you need to get through the toughest jobs. Integrated oil coolers extend oil-change intervals and maintain low temperatures during the entire power range. High-efficiency, heavy-duty air filters provide protection from debris and ensure longer service intervals. Extra-large sleeve bearings support heavy loads in commercial and industrial environments.

Features
Integrated oil coolers extend oil-change intervals and maintain low temperatures during the entire power range
High-efficiency, heavy-duty air filters provide protection from debris and ensure longer service intervals
Extra-large sleeve bearings support heavy loads in commercial and industrial environments

• Muffler not supplied, Can be supplied at additional cost (Available on our Accessories Page)

Specifications

Engine Type - 4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
Model - Command PRO CH980
Power[1] kw (hp) - 26.1(35.0)
Displacement - mm3 (in3) 999 (61)
Bore - mm (in) 90 (3.5)
Stroke - mm (in) 78.5 (3.1)
Gross Torque[1] Nm (lb-ft) - 73.9 (54.5)
Compression Ratio - 8.8:1
Dry Weight - kg (lbs) 59 (132)
Oil Capacity - L (US qt) 2 (2.1)
Lubrication - Full pressure w/full-flow filter
Dimensions - LxWxH mm (in) 388 x 484 x 699 (15.3 x 19.0 x 27.5)
Backpressure Limit[2]- 40
Shaft Diameter Size - 1-1/8" Keyway
Certified rpm - 3600
Engine Type - Commercial
Air Filter - Heavy Duty
