Description

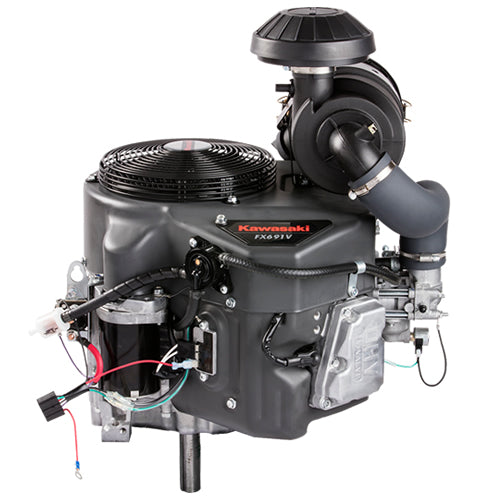

When you’re looking for power for your mower or heavy duty industrial and construction equipment, you’ll find it here. All FX engines are Critical Power SAE-Certified, compact, 90-degree V-twin engines.The FX691V engine takes on the toughest jobs with Kawasaki-engineered power.This forced air-cooled V-twin engine features an internally vented carburetor with fuel shut-off solenoid and heavy duty canister air filter.

FEATURES

  • Overhead v-valve
  • 90° V-twin
  • High performance pressurized lubrication
  • Electronic spark ignition
  • Automatic compression release
  • Internally vented carburetor
  • Rotating grass screen
  • Dual stage canister air filter
  • Cast-iron cylinder liners
  • Metal engine cover

Specifications

  • Displacement 726 cc (44.3 cu. in.)
  • Number of Cylinders 2
  • Bore x Stroke 3.1 x 3.0 in. (78 x 76mm)
  • Compression Ratio 8.2:1
  • Oil capacity w/filter 2.2 U.S. qt ( 2.1 liters)
  • Maximum Power 22.0 hp (16.4 kW)at 3,600 RPM
  • Maximum Torque 39.4 ft lbs (53.4 N·m)at 2,200 RPM
  • Dry Weight 101.4 lbs (46.0 kgs)
  • Muffler needs to be purchased seperatly
.
