Description

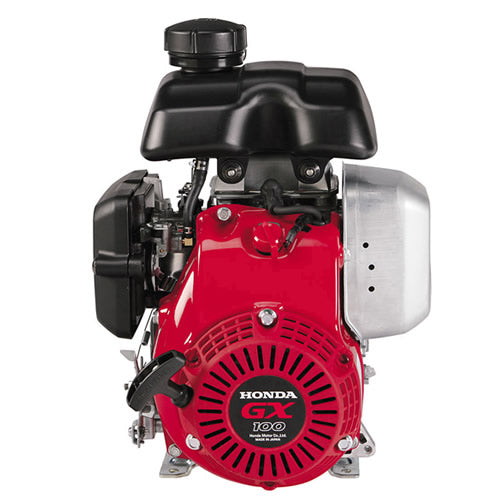

The GX100 engine is suitable for a wide range of heavy-duty applications, construction equipment, portable generators, pumps and other industrial applications.

  • The OHC design is driven by a maintenance-free, low-noise timing belt, which makes the engine more compact and lightweight
  • A special cast iron cylinder sleeve and a high carbon steel, dual ball-bearing crankshaft ensure a high durability and reliability
  • The unique OHC layout combined with a large-capacity muffler reduces engine noise to low levels for better user-friendliness
  • Meets world's most stringent environmental legislation
  • A compact combustion chamber with high thermal efficiency ensures low fuel consumption

Specifications

  • Engine Type Air-cooled 4-stroke OHV single cylinder
  • Bore x Stroke (mm) 56 x 40
  • Displacement (cc) 98
  • Horsepower Class (hp) 2.8
  • Shaft Type - 5/8" Keyway Shaft
  • Fuel Type Unleaded
  • Fuel Tank Capacity (Ltrs) 0.77
  • Oil Alert System - Yes
  • Dimensions LxWxH (mm) 295 x 304 x 402
.
