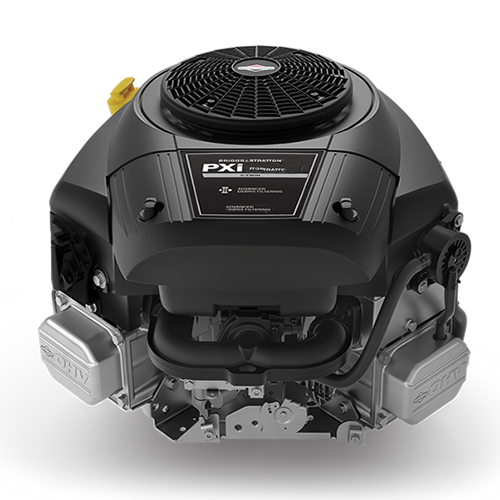

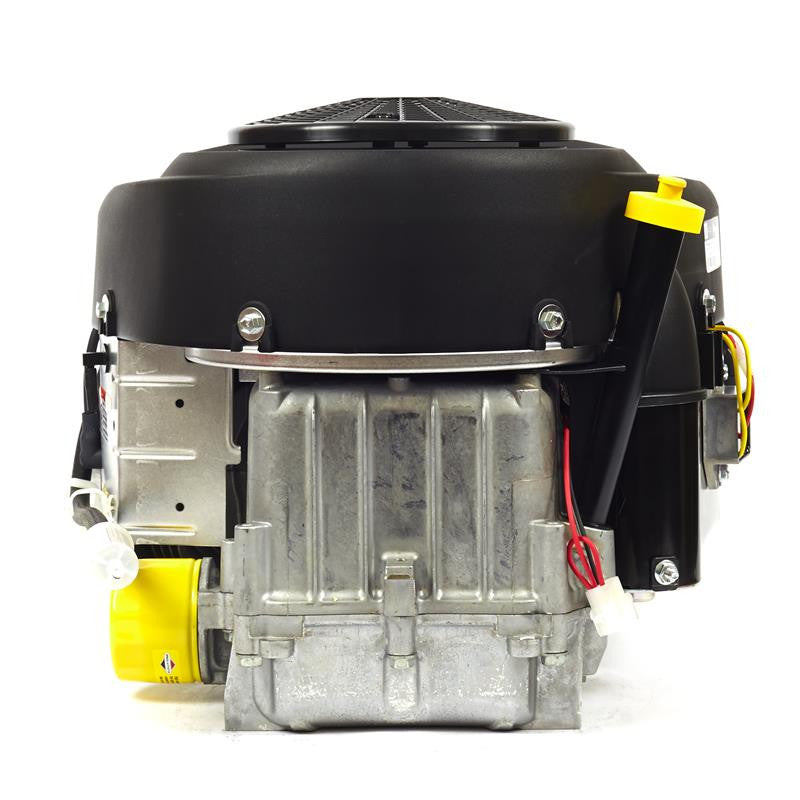

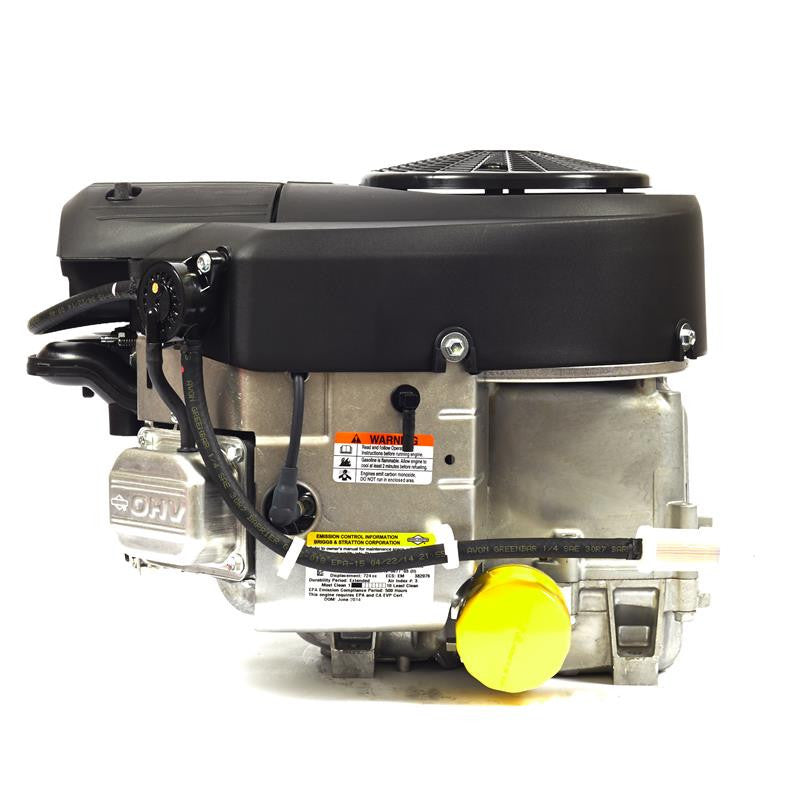

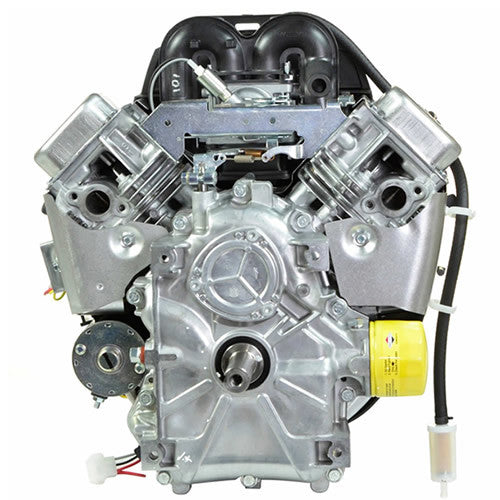

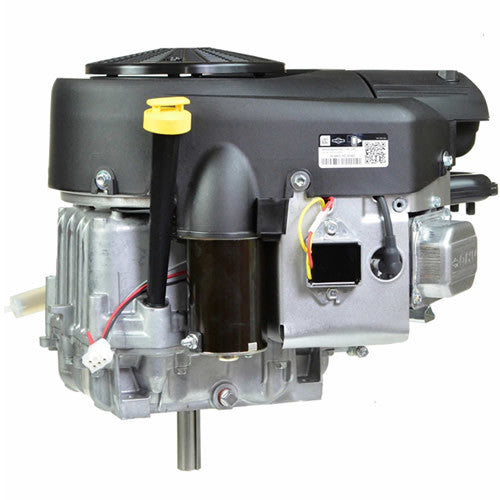

Briggs & Stratton 27HP V-Twin Petrol Engine (PXI Pro Series)

$2,890.00

SHAFT OPTIONS

Delivery and Shipping

We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.



Description

The Briggs & Stratton 27Hp Vertical V-Twin Pro Series engine with electric start delivers top reliability, performance and durability to meet the demands of professionals. The Briggs Pro-Series 27Hp engine features a pressure lubrication system with an automotive full flow style spin on oil filter. This model engine has Briggs and Stratton's latest advanced debris management system, which keeps the engine clean by deflecting and ejecting grass and debris for a longer engine life.

Typical Applications :- This Briggs & Stratton series engine is a ideal replacement engine for most ride on mowers on the market. It is a ideal replacement for all previous Briggs & Stratton V-Twin models around the same H.P

Specifications

  • Dura-Bore cast iron cylinder sleeve for extended life
  • Dependable float feed type carburetor with integral fuel pump for remote mount fuel tank
  • Maintenance-free Magnetron electronic ignition for quick, dependable starts
  • Mechanical compression release for smooth, quick starting
  • Advanced debris management system with a dual seal, cartridge-style air filter provides maximum protection and extends engine life
  • Full pressure lubrication with spin-on oil filter assures controlled lubrication for extended component life
  • Keyway Shaft - 1 Inch Diameter Or 1.1/8" Diameter

Note :- Muffler Not Supplied with engine - Can be supplied at additional cost (Available on our Accessories Page)

Specifications

Engine Series

Briggs & Stratton Pro Series

Engine Style

Vertical

Cylinders

2

Engine Type

4 Cycle OHV

Cooling System

Air

Dry Weight

40kg

Engine CC

810 cc

Engine HP

27HP

Cylinder Bore Type

Cast Iron

Bore

83.8 mm

Stroke

73.4 mm

Starting System

Key Start

Ignition System

Electronic Spark

Oil Filter

Yes

Oil capacity

2 Ltrs

Muffler

No

Air Cleaner

Dual Element

Fuel Tank

No

Crankshaft Rotation

Counter Clockwise

Shaft Size

1 inch or 1" 1/8

Crankshaft Type

Straight Keyway

Crankshaft Diameter

1 inch or 1" 1/8

Crankshaft Length

3" 5/32 or 4" 5/16

Crankshaft End Tapped Size

7" 16/20

Crankshaft Keyway Width

1/4 Inch

Warranty

2 Years

Dimensions

490 x 462 x 399 mm (LxWxH)
