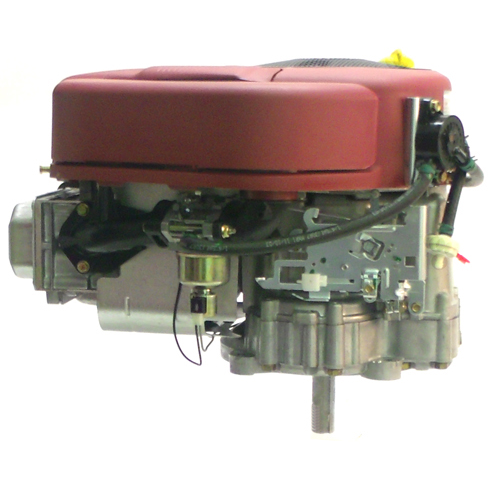

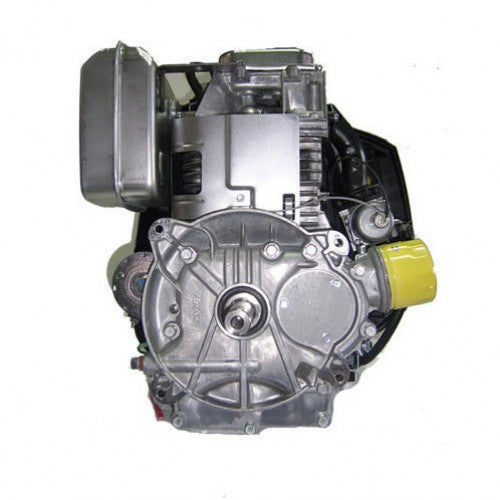

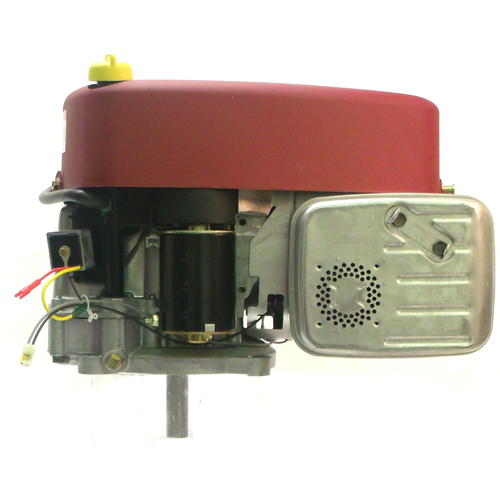

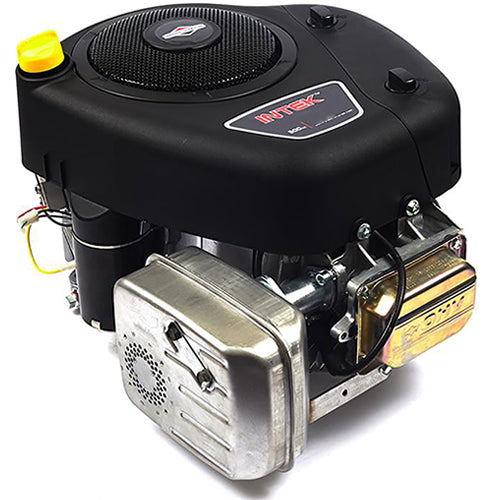

Briggs & Stratton 15.5HP Lawnmower Engine (Intek EX1550 Series)
Briggs & Stratton 15.5HP Lawnmower Engine (Intek EX1550 Series) is backordered and will ship as soon as it is back in stock.
Replacement Engine Tips
Replacement Engine Tips
Try to match the engine Horsepower (CC), Shaft Diameter & Length, Fuel Tank & Muffler location to the engine being replaced.
Delivery and Shipping
Delivery and Shipping
We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.
Description
The Briggs & Stratton powerful 15.5Hp Intek Series delivers unmatched reliability along with superior performance and durability. The new Intek series engines were designed to be best in its class combining power, performance, features and size.These engines offer consumers and professionals commercial grade features including easy starting, quieter operation, longer life.
Typical Applications :- This Briggs & Stratton Intek series engine is a ideal replacement engine for most ride on mowers on the market. It is a ideal replacement for all previous Briggs & Stratton 11 - 15Hp models.
Specifications
- Automotive Style Dipstick
- Briggs Model 31R777
- Electric Start
- Super Quiet Muffler
- Heavy Duty Sleeve Bearings
- Over Head Valve Engine (OHV)
- Electronic Ignition
- 1 inch Diameter / 3.5/32' Long Keyway Shaft
- 500cc / Vertical Shaft
- 479 (mm) x 393 (mm) x 327 (mm) (LxWxH)
- 2 Year Warranty - Australia Wide
Specifications
|
Engine Series |
Briggs & Stratton Intek Series |
|
Engine Style |
Vertical |
|
Cylinders |
1 |
|
Engine Type |
4 Cycle OHV |
|
Cooling System |
Air |
|
Dry Weight |
30kg |
|
Engine CC |
500 cc |
|
Engine HP |
15.5HP |
|
Cylinder Bore Type |
Cast Iron |
|
Bore |
90.5 mm |
|
Stroke |
77.8 mm |
|
Starting System |
Key Start with Back Up Recoil |
|
Ignition System |
Electronic Spark |
|
Oil Filter |
Yes |
|
Oil capacity |
1.35 ltr |
|
Muffler |
Included |
|
Air Cleaner |
Dual Element |
|
Fuel Tank |
No |
|
Crankshaft Rotation |
Counter Clockwise |
|
Shaft Size |
1 Inch x 3" 5/32 |
|
Crankshaft Type |
Straight Keyway |
|
Crankshaft Diameter |
1 Inch |
|
Crankshaft Length |
3" 5/32 |
|
Crankshaft End Tapped Size |
7" 16/20 |
|
Crankshaft Keyway Width |
1/4 Inch |
|
Warranty |
2 Years |
|
Dimensions |
479 x 393 x 327 mm (LxWxH) |
