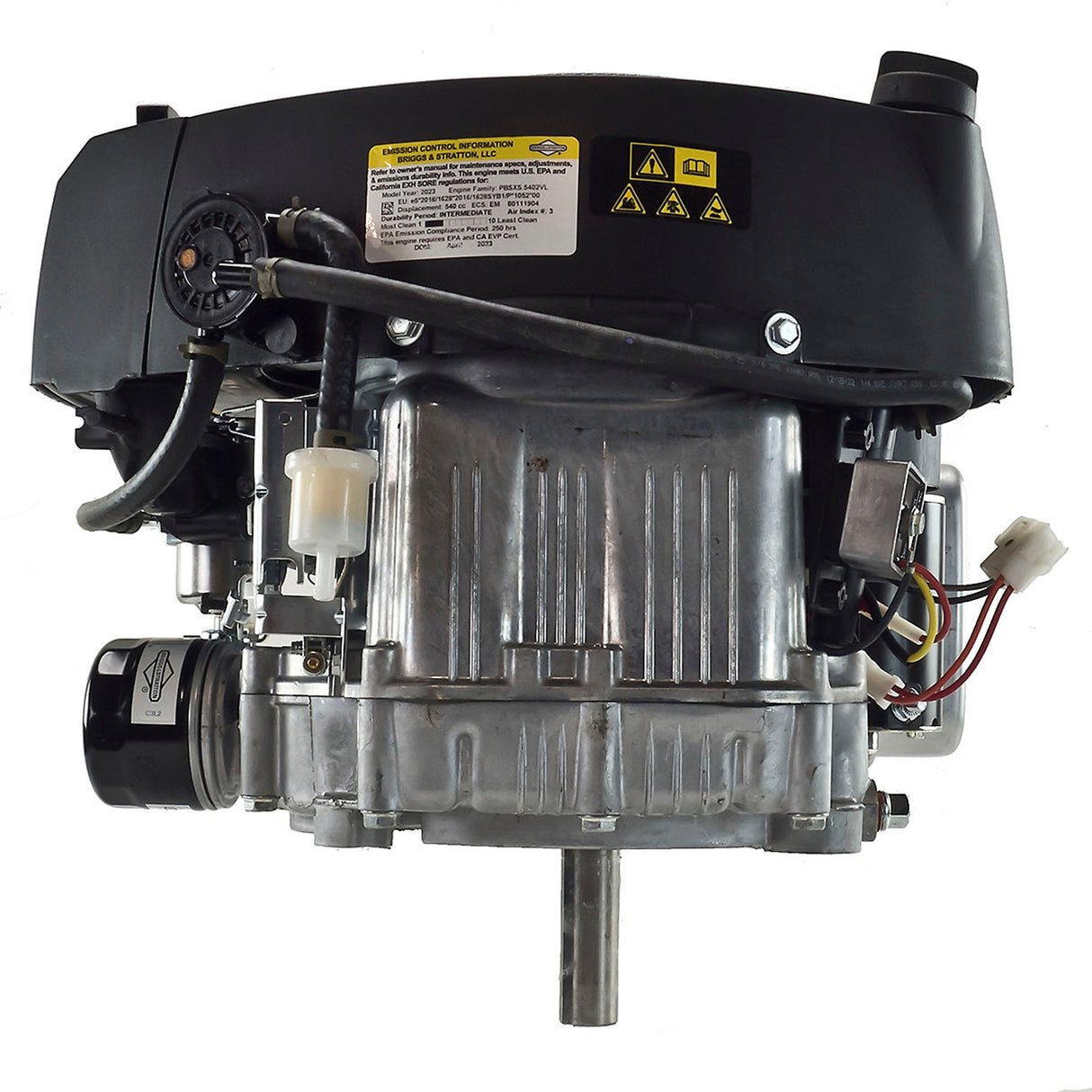

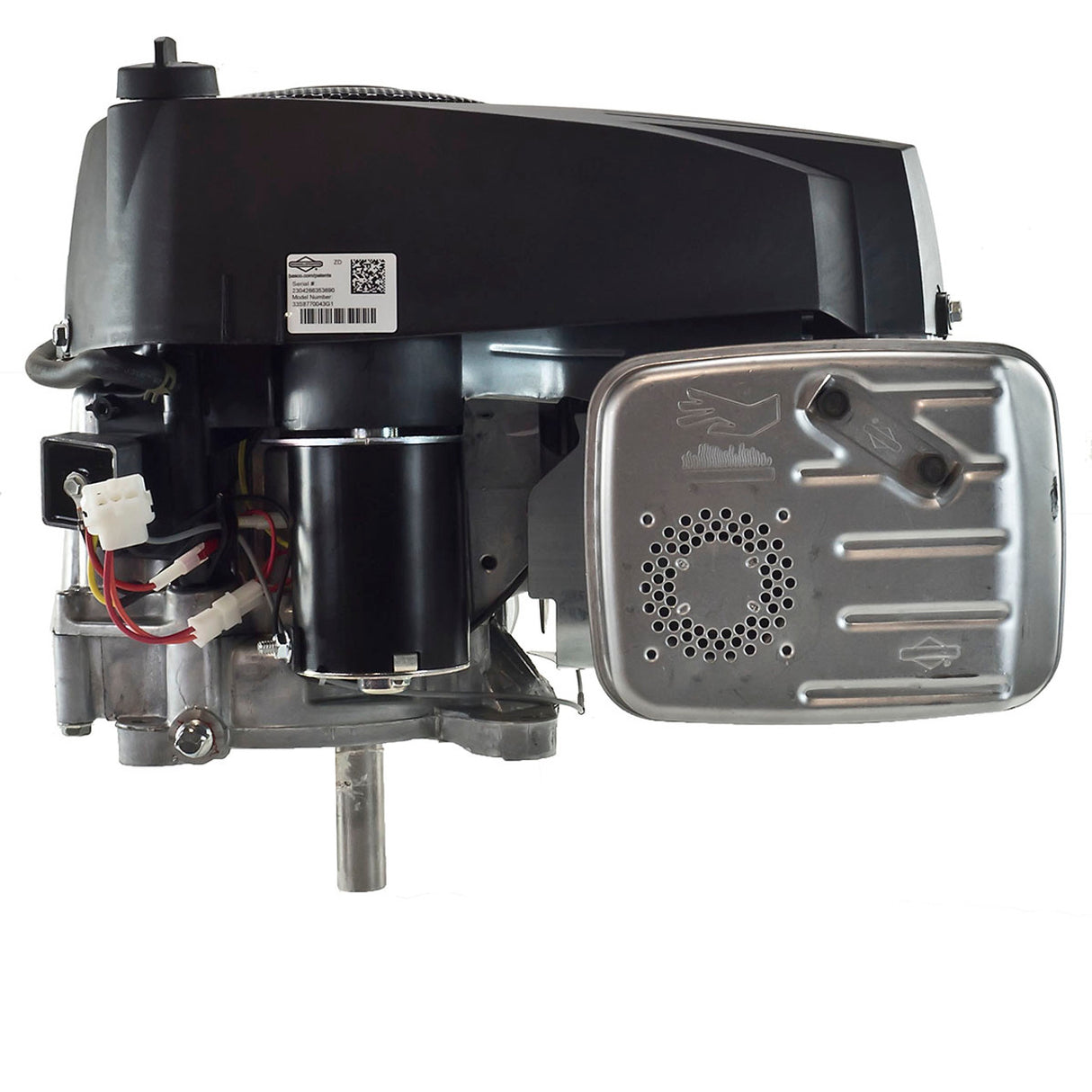

Briggs & Stratton 19HP Lawnmower Engine (EX1900 Series)
Briggs & Stratton 19HP Lawnmower Engine (EX1900 Series) is backordered and will ship as soon as it is back in stock.
Replacement Engine Tips
Replacement Engine Tips
Try to match the engine Horsepower (CC), Shaft Diameter & Length, Fuel Tank & Muffler location to the engine being replaced.
Delivery and Shipping
Delivery and Shipping
We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.
Description
The Briggs & Stratton EX1900 Series 19Hp Vertical OHV engine with electric start delivers top reliability, performance and durability to meet the demands of professionals. This Briggs & Stratton series engine is a ideal replacement engine for most ride on mowers on the market.The Briggs EX1900 Series 19Hp engine features a pressure lubrication system with an automotive full flow style spin on oil filter that cleans contaminants from the oil. This model engine has Briggs and Strartton's latest AVS antivibration system which elimates side to side motion of a traditional counter and rotating balance system.
This genuine 540cc Briggs and Stratton single cylinder engine offers dependable power for your equipment needs. With a power rating of 19.0 horsepower, this engine features a premium pleated paper air filtration system, electric starter, and maintenance-free Magnetron electronic ignition. With a manufacturer limited warranty of 2 years consumer use / 1 year commercial use, Briggs and Stratton provides power that you can trust. This engine includes a Dura-Bore cast iron cylinder sleeve for extended life. This engine includes an installed muffler, a fuel pump, and a 9 amp charging system. *Replacement engines are very specific to your current model number. Please contact us or the manufacturer for the correct replacement for your original engine.
Typical Applications :- This Briggs & Stratton series engine is a ideal replacement engine for most ride on mowers on the market. It is a ideal replacement for all previous Briggs & Stratton 14 - 21Hp models.
Key Features
- Automotive Style Dipstick
- Briggs Model 33S877
- Electric Start
- Super Quiet Muffler fitted as standard
- Dura-Bore cast iron cylinder sleeve
- Over Head Valve Engine (OHV)
- Full-Pressure Lubrication w/ Spin-On Oil Filter
- Advanced Debris Management System
- Float-Feed Carburetor & Mechanical Governor
- Electronic Ignition
- 1 inch Diameter / 3.5/32' Long Keyway Shaft
- Vertical Shaft
- 19 (in) x 16.5 (in) x 13 (in) (LxWxH)
- 2 Year Warranty - Australia Wide
Specifications
|
Engine Series |
Briggs & Stratton EX1900 Series |
|
Engine Style |
Vertical |
|
Cylinders |
1 |
|
Engine Type |
4 Cycle OHV |
|
Cooling System |
Air |
|
Charging Circuit |
9 Amps |
|
Engine CC |
540cc |
|
Engine HP |
19hp |
|
Cylinder Bore Type |
Cast Iron |
|
Bore |
3.70 inches |
|
Stroke |
3.06 inches |
|
Starting System |
12 volt key start |
|
Ignition System |
Electronic Spark |
|
Oil Filter |
Yes |
|
Oil capacity |
48 oz |
|
Muffler |
Included |
|
Air Cleaner |
Dual Element |
|
Fuel Tank |
Not Included |
|
Crankshaft Rotation |
Counterclockwise |
|
Shaft Size |
1 x 3-5/32 Inch |
|
Crankshaft Type |
Straight Keyway |
|
Crankshaft Diameter |
1 Inch |
|
Crankshaft Length |
3-5/32" |
|
Crankshaft End Tapped Size |
7/16-20 |
|
Crankshaft Keyway Width |
1/4 Inch |
|
Warranty |
2 Years |
|
Dimensions |
483 (mm) x 419 (mm) x 330 (mm) (LxWxH) |
