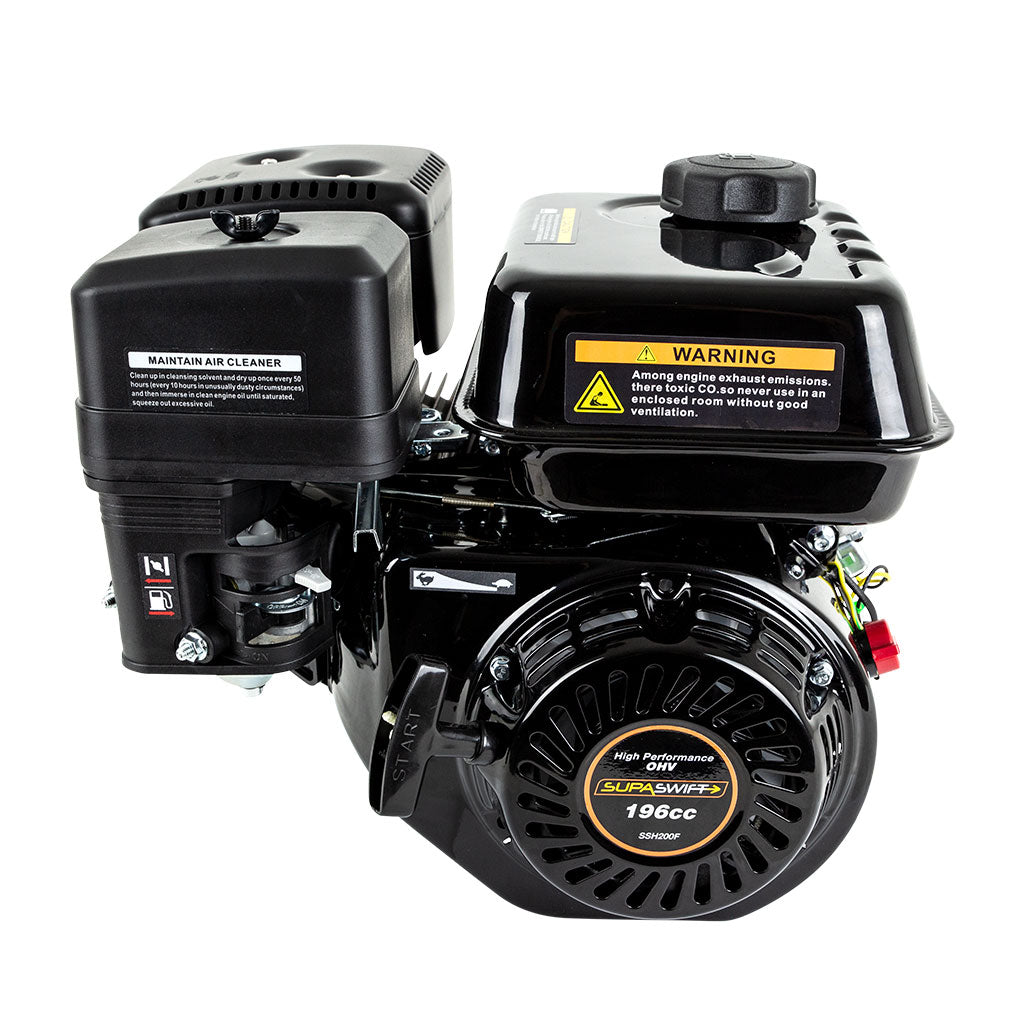

Supaswift SSH200F 196cc Horizontal Shaft Petrol Engine
Supaswift SSH200F 196cc Horizontal Shaft Petrol Engine is backordered and will ship as soon as it is back in stock.
Replacement Engine Tips
Replacement Engine Tips
Try to match the engine Horsepower (CC), Shaft Diameter & Length, Fuel Tank & Muffler location to the engine being replaced.
Delivery and Shipping
Delivery and Shipping
We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.
Have a Product Question.?
Have a Product Question.?
Please contact us for more product information here :- Contact Us
The Supaswift SSH200F is a quality small engine packed with premium features such as a forged crankshaft, metal cam shaft, cast iron cylinder liner, OHV design, low-oil safety cut-out and with proven reliability this engine is ready to be fitted to a variety of outdoor power equipment to provide years of trouble free service.
Features: Cast-iron cylinder lining.
Forged crankshaft.
Metal camshaft.
OHV design.
Low oil cut-out protection.
Lightweight.
Proven reliability.
Type: Air cooled, single cylinder OHV, horizontal shaft, natually aspirated 4 stroke petrol engine.
Displacement: 196cc.
Bore x Stroke: 68mm x 54mm.
Cylinder: Single cylinder, with cast-iron cylinder liner.
Compression Ratio: 8.5:1.
Net Power: 4.1kW @ 3600rpm. (Measured in accordance with SAE J1349)
Net Torque: 12.4 Nm @ 2500rpm. (Measured in accordance with SAE J1349)
Crankshaft: Forged crankshaft
Crankshaft Diameter (inches): 3/4"
Crankshaft Diameter (mm): 19.05mm
PTO Shaft Type: 3/4" (19.05mm), parallel keyway.
PTO Shaft Rotation: Anti-clockwise (from PTO side)
Cooling: Air cooled.
Governor: Centrifugal mass type.
Carburettor: Butterfly type.
Choke: Auto choke.
Idle Speed: 1800 ± 150 rpm/min
Starter: Recoil Start.
Ignition: Transistorised Magneto Ignition
Lubrication: Splash.
