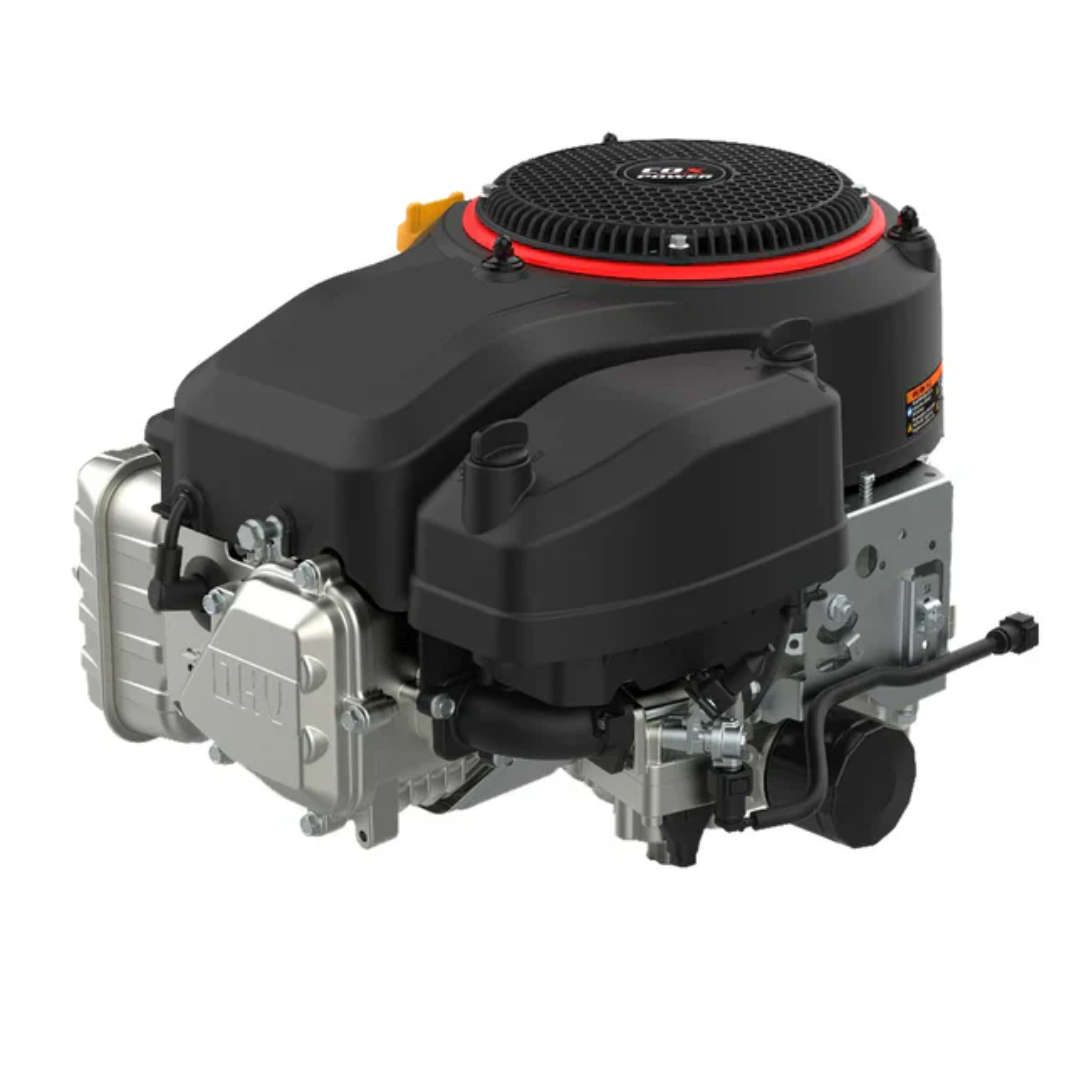

COX CPV620 21HP Vertical Shaft Lawnmower Engine
COX CPV620 21HP Vertical Shaft Lawnmower Engine is backordered and will ship as soon as it is back in stock.
Replacement Engine Tips
Replacement Engine Tips
Try to match the engine Horsepower (CC), Shaft Diameter & Length, Fuel Tank & Muffler location to the engine being replaced.
Delivery and Shipping
Delivery and Shipping
We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.
Have a Product Question.?
Have a Product Question.?
Please contact us for more product information here :- Contact Us
The new COX CPV620 petrol engine is an optimal engine selection for small to large ride-on mowers featuring an electric start. This engine boasts a massive 622cc displacement and delivers 21.0hp power, ensuring efficient and reliable performance. With a 1” crankshaft size and a 96x86 mm cylinder bore it is meticulously designed for durability. Operating at a maximum speed of 3800 r/min and producing a torque of 40 N.m, it guarantees powerful performance. The COX CPV620 is equipped with a 1.8L oil capacity and is compatible with SAE 10W-30 oil. Measuring 505 x 440 x 435 mm and weighing 33 kg, this engine complies with CE, EC(V) standards.
Typical Applications :- This COX engine is a ideal replacement engine for most ride on mowers on the market. It is a ideal replacement for all previous engines around 14 - 21Hp.
Key Features
- 622cc
- Electric Start
- Muffler fitted as standard
- Cast iron cylinder sleeve
- Over Head Valve Engine (OHV)
- Spin-On Oil Filter
- Float-Feed Carburetor & Mechanical Governor
- Electronic Ignition
- 1 inch Diameter / 3.5/32' Long Keyway Shaft
- Vertical Shaft
- 2 Year Domestic Warranty - Australia Wide
Specifications
|
Engine Series |
Cox CPV620 |
|
Engine Style |
Vertical |
|
Cylinders |
1 |
|
Engine Type |
4 Cycle OHV |
|
Cooling System |
Air |
|
Charging Circuit |
9 Amps |
|
Engine CC |
540cc |
|
Engine HP |
19hp |
|
Cylinder Bore Type |
Cast Iron |
|
Bore |
96mm |
| Stroke | 86mm |
|
Starting System |
12 volt key start |
|
Ignition System |
Electronic Spark |
|
Oil Filter |
Yes |
|
Oil capacity |
1.8 Litres |
|
Muffler |
Included |
|
Air Cleaner |
Dual Element |
|
Fuel Tank |
Not Included |
|
Crankshaft Rotation |
Counterclockwise |
|
Shaft Size |
1 x 3-5/32 Inch |
|
Crankshaft Type |
Straight Keyway |
|
Crankshaft Diameter |
1 Inch |
|
Crankshaft Length |
3-5/32" |
|
Crankshaft End Tapped Size |
7/16-20 |
|
Crankshaft Keyway Width |
1/4 Inch |
|
Warranty |
2 Year |
|
Dimensions |
505 x 440 x 435mm (LxWxH) |
