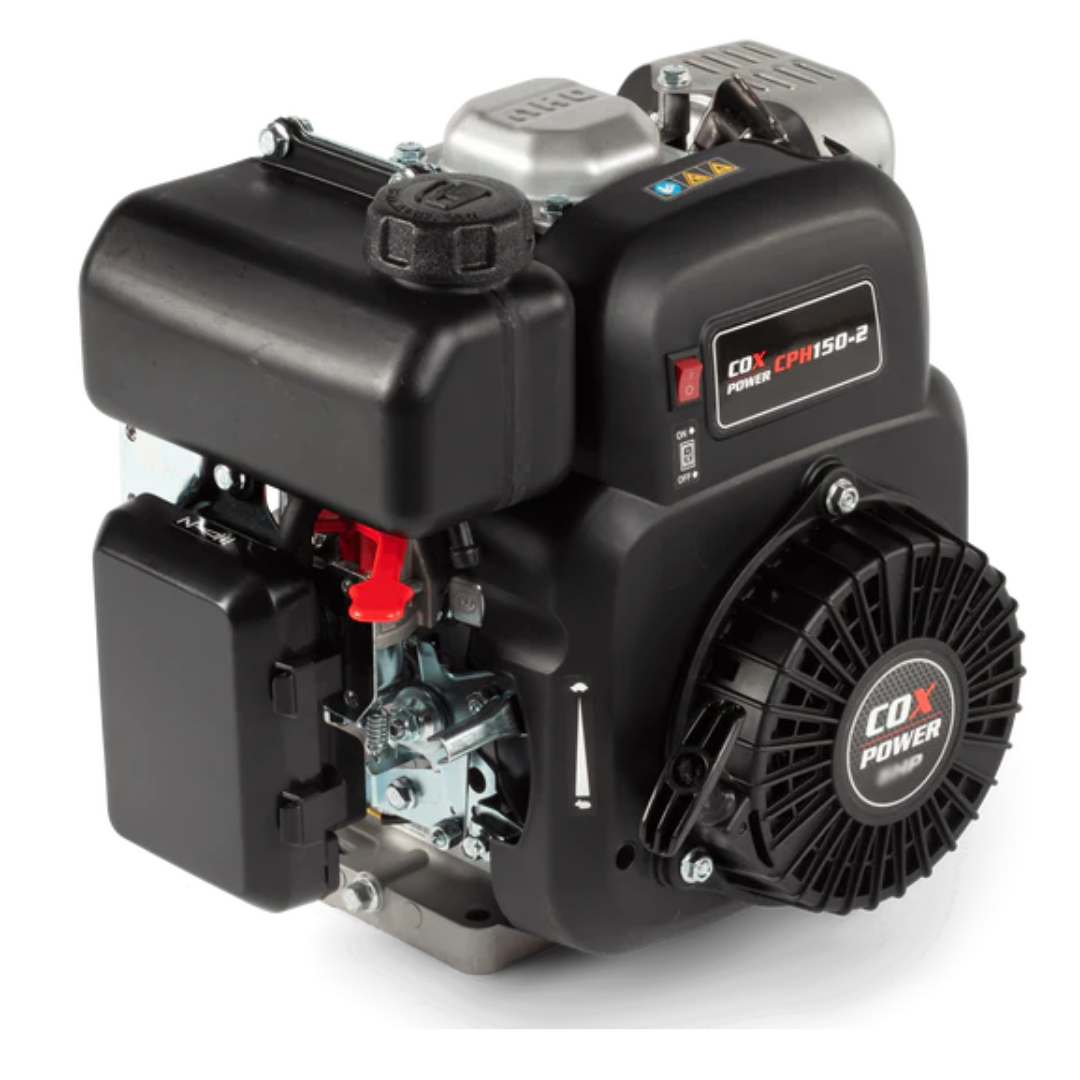

Cox CPH150 3.5HP Horizontal Shaft Petrol Engine
Cox CPH150 3.5HP Horizontal Shaft Petrol Engine - 5/8 Inch Diameter is backordered and will ship as soon as it is back in stock.
Replacement Engine Tips
Replacement Engine Tips
Try to match the engine Horsepower (CC), Shaft Diameter & Length, Fuel Tank & Muffler location to the engine being replaced.
Delivery and Shipping
Delivery and Shipping
We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.
Have a Product Question.?
Have a Product Question.?
Please contact us for more product information here :- Contact Us
Introducing the new COX CPH150 petrol engine, This engine is a versatile 3.5hp recoil start engine meticulously engineered to meet the demands of various applications requiring a compact petrol engine. Tailored for lawn and garden equipment, commercial pressure washers, and portable generators, this engine features a robust 65x45 mm cylinder bore with a cast iron liner for consistent and reliable performance. With a maximum output speed of 4000 r/min and a torque of 7.2 N.m, the COX CPH150 delivers dependable power with multiple shaft diameter options. The COX CPH150 holds certifications from CE, EC(V), EPA, and CARB, underscoring its commitment to quality standards.
Key Features
- Overhead Valve (OHV) Technology
- Float Feed carburetor and Mechanical Governor
- Electronic Ignition System
- Recoil Start
- Recommended Oil - SAE10W30
- Compact Design
- Dual Ball Bearings
- Dimensions - 360 x 315 x 390 cms (LxWxH)
- 2 Year Domestic Warranty - Australia Wide
Specifications
|
Engine Series |
COX CPH150 |
|
Engine Style |
Horizontal |
|
Cylinders |
1 |
|
Engine Type |
4 Cycle OHV |
|
Cooling System |
Air |
|
Dry Weight |
9.9 Kgs |
|
Engine CC |
132cc |
|
Engine HP |
3.5hp |
|
Max speed |
4000 RPM |
|
Bore |
61mm |
|
Stroke |
45mm |
|
Starting System |
Recoil start |
|
Ignition System |
Electronic Spark |
|
Oil Filter |
No |
|
Oil capacity |
0.5mm |
|
Muffler |
Included |
|
Air Cleaner |
Dual Element |
|
Fuel Tank |
1.2 Litre |
|
Crankshaft Rotation |
Counterclockwise |
|
Shaft Size |
3/4 Inch or 5/8 Inch |
|
Crankshaft Type |
Straight Keyway |
|
Crankshaft Diameter |
3/4 Inch or 5/8 Inch |
|
Crankshaft Length |
2-27/64" |
|
Crankshaft End Tapped Size |
5/16-24 - 1/4-28 |
|
Crankshaft Keyway Width |
3/16 Inches |
|
Warranty |
2 Year |
|
Dimensions |
360 x 315 x 390 cms (LxWxH) |
