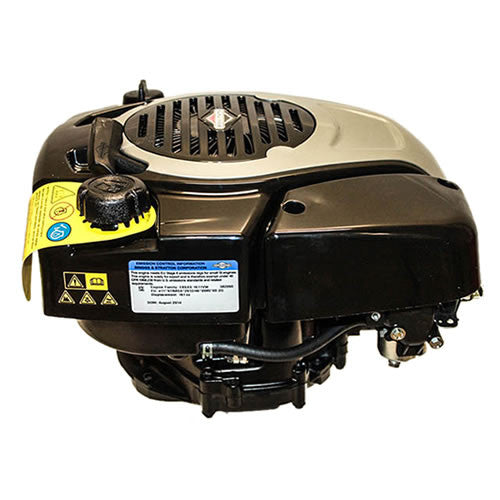

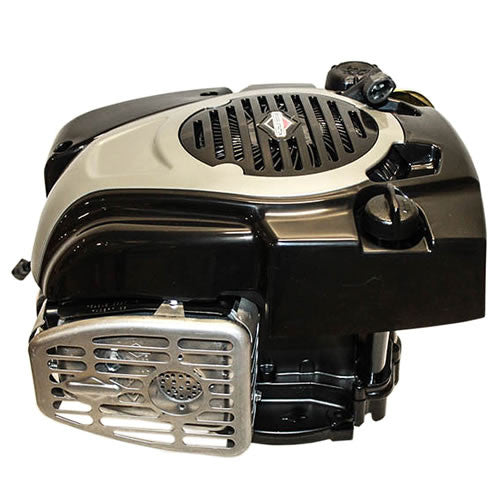

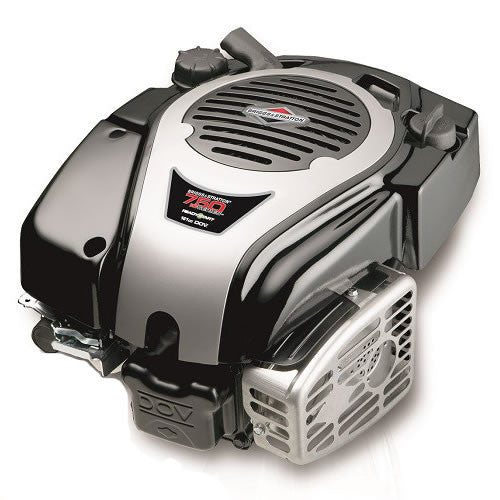

Briggs & Stratton 5.5hp (750EX I/C Series) Lawnmower Engine
Briggs & Stratton 5.5hp (750EX I/C Series) Lawnmower Engine - 7/8 Diameter - 50ML Long is backordered and will ship as soon as it is back in stock.
Replacement Engine Tips
Replacement Engine Tips
Try to match the engine Horsepower (CC), Shaft Diameter & Length, Fuel Tank & Muffler location to the engine being replaced.
Delivery and Shipping
Delivery and Shipping
We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.
Briggs & Stratton 5.5hp (750EX I/C Series) Lawnmower Engine
Description
The 750EX SERIES™ DOV® engine delivers breakthrough performance driven by technology that makes a difference you can SEE, FEEL and HEAR. The patented Direct Overhead Valve (DOV®) engine delivers more torque, improved sound quality, and less noise and vibration than competitive engines in the same class. The 750EX SERIES engines are ideal to power lawnmowers for gardens up to 1500 square meters.
Specifications
- Model - 100802
- Gross Torque - 9.8Nm
- Displacement cc - 161
- Cylinder - Cast Iron
- Bore & Stroke - 64.0 x 50.0
- Fuel Tank Capacity - 1 Litre
- Oil Capacity - 0.6 Litre
- Dry Weight - 11.1kgs
- Dimensions - 369 x 325 x 254mm
- Features - DOV Technology, ReadyStart, Mechanical Governor, Performance Muffler, High Oil Fill Tube, Paper Air Filter (Oval)
Specifications
|
Engine Series |
Briggs & Stratton 750EX Series |
|
Engine Style |
Vertical |
|
Cylinders |
1 |
|
Engine Type |
4 Cycle OHV |
|
Cooling System |
Air |
|
Dry Weight |
11.1 kg |
|
Engine CC |
161 cc |
|
Engine HP |
5.5HP |
|
Cylinder Bore Type |
Cast Iron |
|
Bore |
64mm |
|
Stroke |
50mm |
|
Starting System |
Recoil |
|
Ignition System |
Electronic Spark |
|
Oil Filter |
No |
|
Oil capacity |
0.6 ltr |
|
Muffler |
Lo Tone Muffler |
|
Air Cleaner |
Dry Paper |
|
Fuel Tank |
1 ltr |
|
Crankshaft Rotation |
Counter Clockwise |
|
Shaft Size |
3 Options: 7/8 Dia x 50mm Long or 7/8 Dia x 70mm Long or 25mm Dia x 70mm Long |
|
Crankshaft Type |
Straight Keyway |
|
Crankshaft Diameter |
7/8 or 25mm |
|
Crankshaft Length |
50mm or 70mm |
|
Crankshaft End Tapped Size |
Various |
|
Crankshaft Keyway Width |
Various |
|
Warranty |
2 Years |
|
Dimensions |
369 x 325 x 254 mm (LxWxH) |
