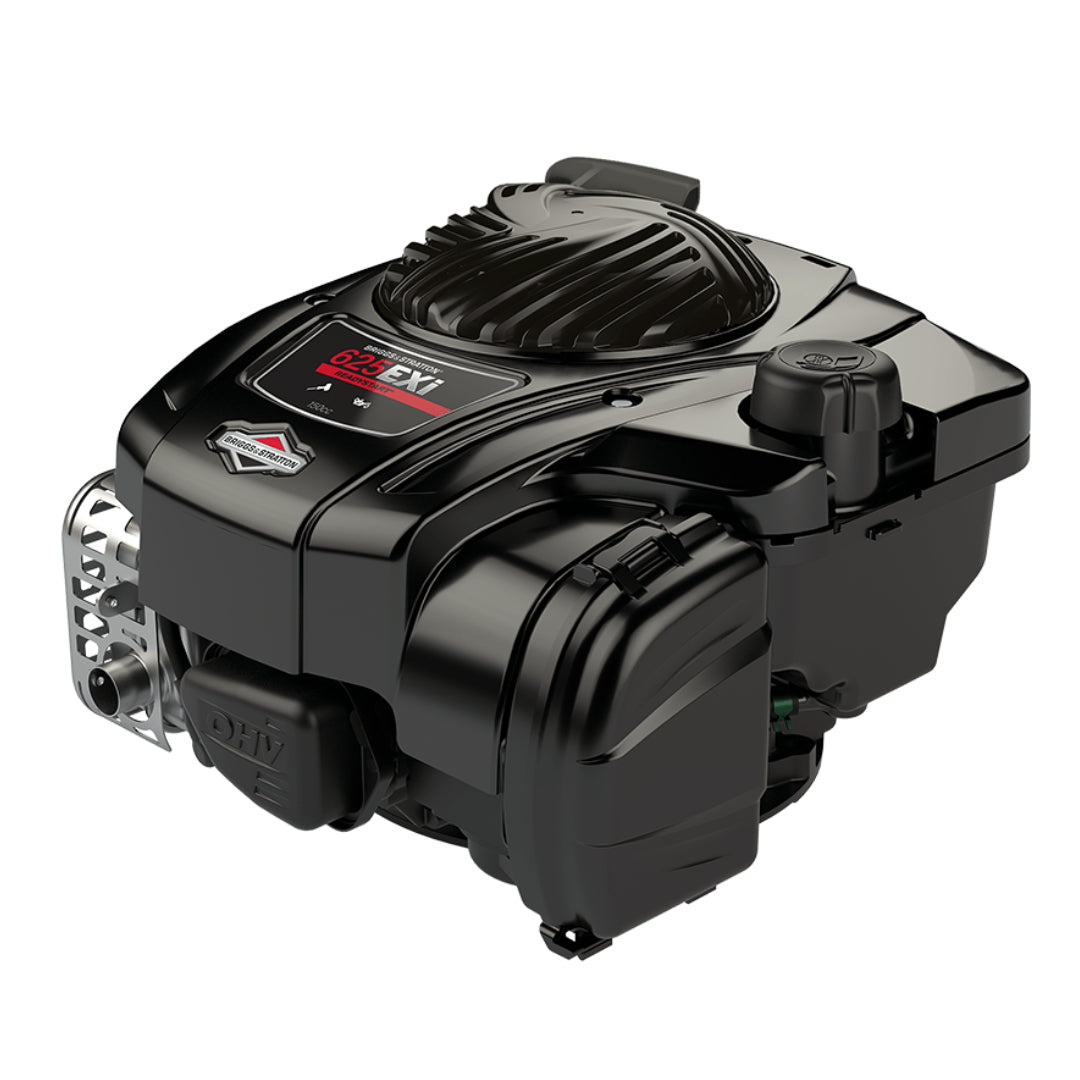

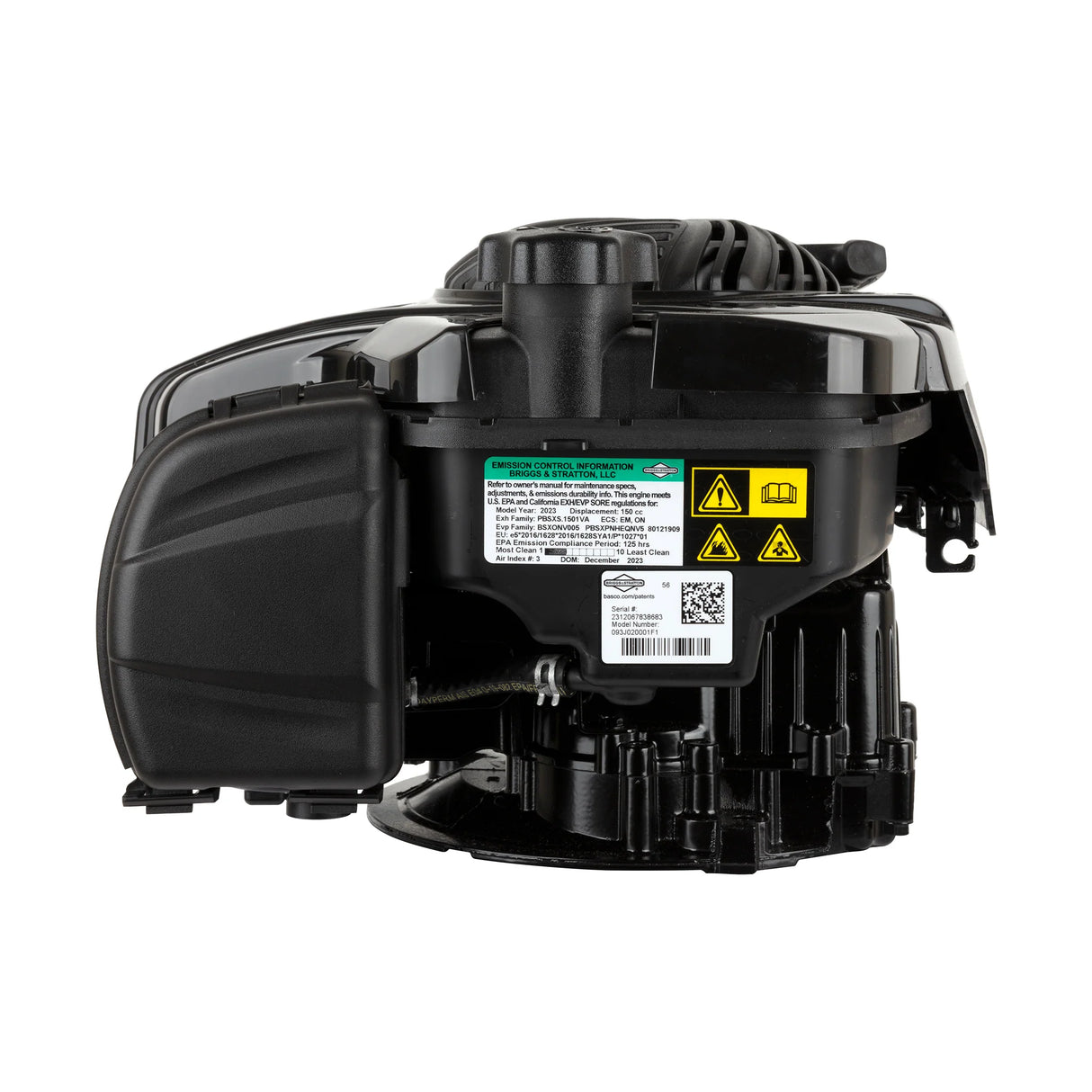

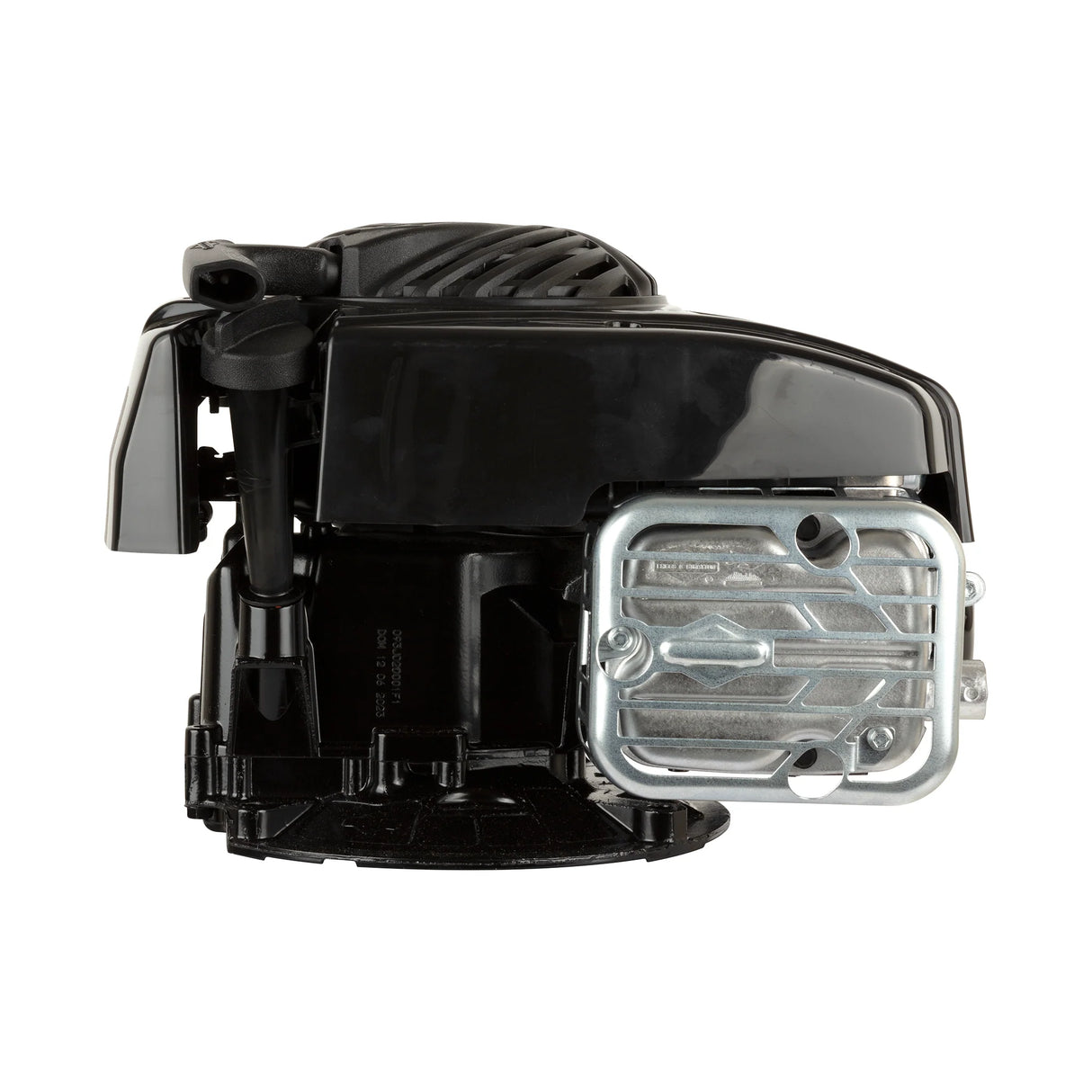

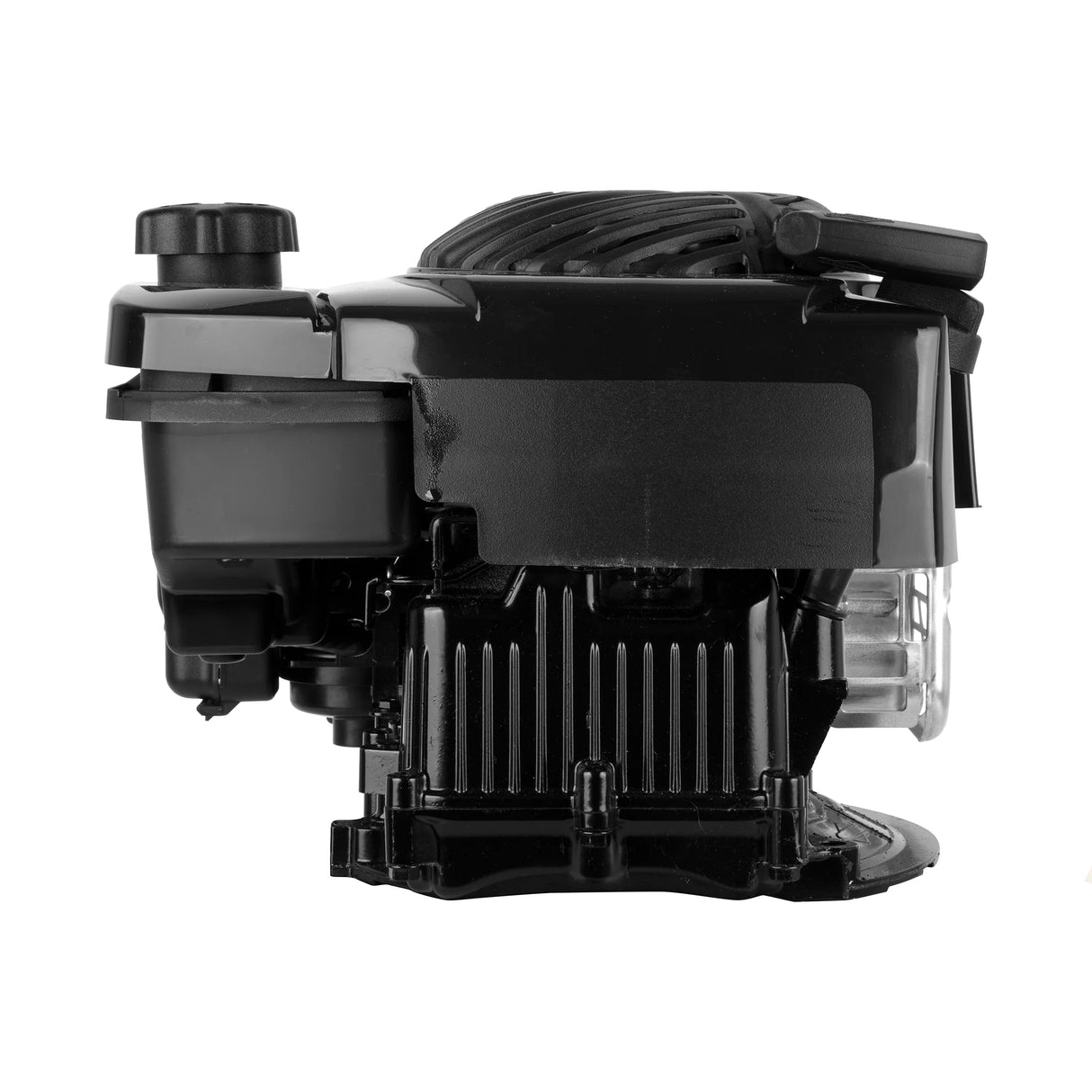

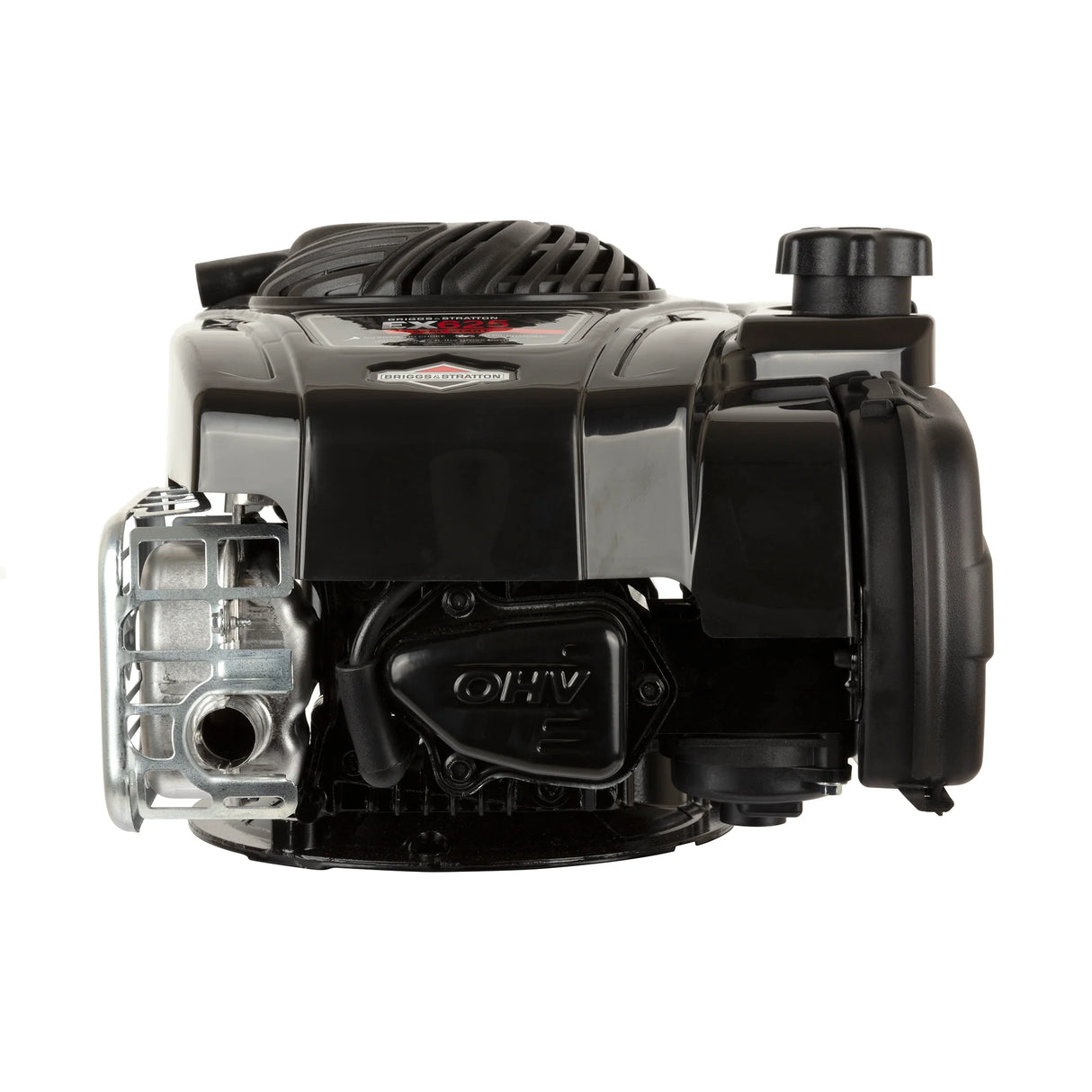

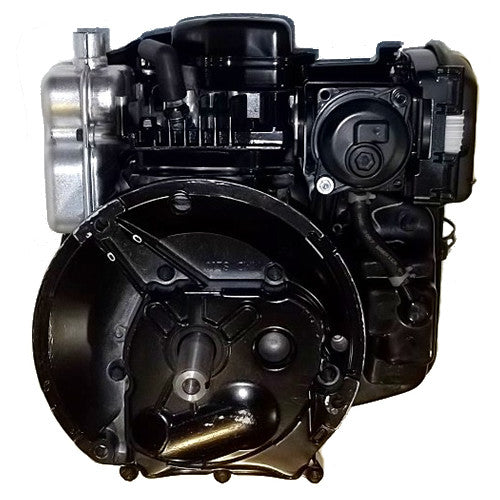

Briggs & Stratton 4.0hp (625EXi Series) Lawnmower Engine
Briggs & Stratton 4.0hp (625EXi Series) Lawnmower Engine - 7/8 Diameter - 50ML Long is backordered and will ship as soon as it is back in stock.
Replacement Engine Tips
Replacement Engine Tips
Try to match the engine Horsepower (CC), Shaft Diameter & Length, Fuel Tank & Muffler location to the engine being replaced.
Delivery and Shipping
Delivery and Shipping
We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.
Description
Cutting your lawn has never been easier.
The 625EXi Series™ engine combines powerful performance with new levels of easy operation. Easy to use, easy to maintain, easy to start – the EX Series delivers a new engine experience for the most demanding job.
The EXi Series needs no regular oil change - just an occasional top-up.
Typical Applications :- This Briggs & Stratton 625EXi Series engine is a ideal replacement engine for Rover, Masport, Supaswift & Victa lawn mowers. It is the direct replacement for all previous Briggs & Stratton 'Quattro' and 'Quantum' Series models.
Specifications
- Compact and Lightweight
- Toll Less Air Cleaner Cover
- Overhead Valve (OHV) Engine Design
- Lo-Tone Muffler
- 7/8' Diameter / 70mm Long Keyway Shaft for Masport, Rover etc or 50mm Long Keyway Shaft for Victa Mowers
- 150cc / Vertical Shaft
- 13.8 (in) x 12.2 (in) x 9.6 (in) (LxWxH)
- 2 Year Warranty - Australia Wide
Specifications
|
Engine Series |
Briggs & Stratton 625EXi Series |
|
Engine Style |
Vertical |
|
Cylinders |
1 |
|
Engine Type |
4 Cycle OHV |
|
Cooling System |
Air |
|
Dry Weight |
8.2kg |
|
Engine CC |
150 cc |
|
Engine HP |
4HP |
|
Cylinder Bore Type |
Aluminum |
|
Bore |
65.6 mm |
|
Stroke |
44.45 mm |
|
Starting System |
Recoil Only |
|
Ignition System |
Electronic Spark |
|
Oil Filter |
No |
|
Oil capacity |
0.5 ltrs |
|
Muffler |
Yes |
|
Air Cleaner |
Dry Paper |
|
Fuel Tank |
0.8ltr |
|
Crankshaft Rotation |
Counter Clockwise |
|
Shaft Size |
7/8 Dia x 50mm Long or 7/8 Dia x 70mm Long |
|
Crankshaft Type |
Straight Keyway |
|
Crankshaft Diameter |
7/8 |
|
Crankshaft Length |
50mm or 70mm |
|
Crankshaft End Tapped Size |
Varies |
|
Crankshaft Keyway Width |
3/16 |
|
Warranty |
2 Years |
|
Dimensions |
347 x 310 x 244 mm (LxWxH) |
