Honda GXV630R 20.0HP Petrol Engine (GXV Series)
Honda GXV630R 20.0HP Petrol Engine (GXV Series) is backordered and will ship as soon as it is back in stock.
Replacement Engine Tips
Replacement Engine Tips
Try to match the engine Horsepower (CC), Shaft Diameter & Length, Fuel Tank & Muffler location to the engine being replaced.
Delivery and Shipping
Delivery and Shipping
We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.
Description
The Honda Stationary Engine GXV630 is a beast, used throughout Australia to power commercial lawn and garden equipment, including Ride-on lawn mowers.
As well as this, the GXV630 is often used to power Construction/Industrial Equipment, as well as heavy-duty Agricultural equipment. With the simplicity of carburation, the Stationary Engine GXV630’s fuel economy is similar to fuel injection.It incorporates digital CDI ignition system with variable timing, insert style rod bearings and a rev limiter to protect against damage from over-revving. A two barrel inner-vent carburettor provides more precise fuel metering, and a hemispherical combustion chamber devliers rapid combustion when you need it.A high capacity 36 blade cooling fan and aluminium push rods with steel tips result in a lightweight, low vibration and quiet operation.The Stationary Engine GXV630’s automatic mechanical de-compression system combines with variable ignition timing to share Honda’s ‘start first time, every time’ reliability.An integrated cylinder & head and racing inspired forged steel connecting rods deliver some of the smoothest performance available in an engine of this size. Don’t forget, all Honda GXV Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.
Specifications
- Engine Type Air cooled 4-stroke OHV petrol engine, 90° V-twin design
- Bore x Stroke (mm) 2 / 78 x 72
- Displacement (cc) 688
- Starter Type Electric Start
- Horsepower Class 15.5KW (20.8 HP) / 3600 rpm

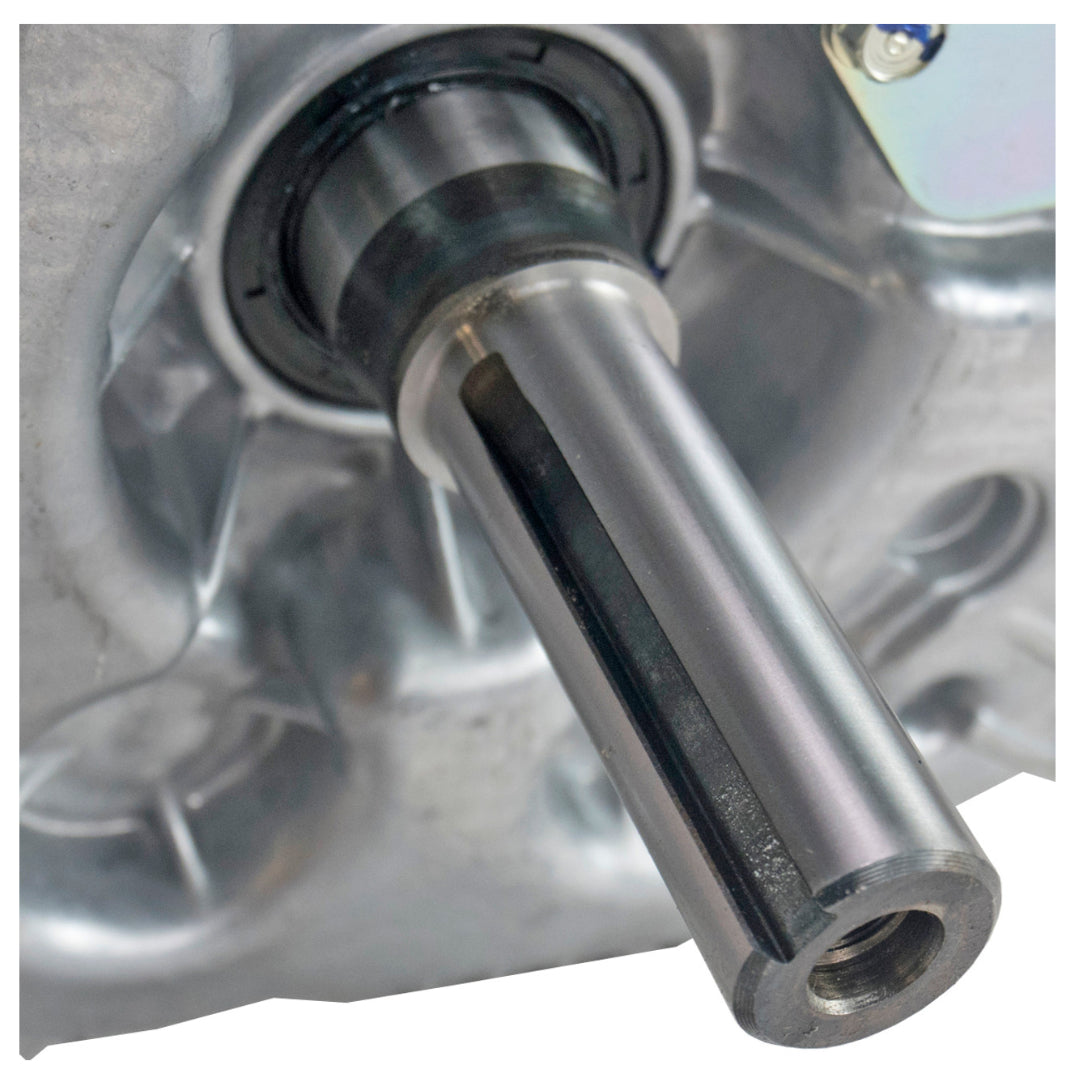

- Shaft Size 1inch Diameter Keyway
- Fuel Type Unleaded
- Oil Capacity (Ltr) 1.9
- Dimensions LxWxH (mm) 405 x 410 x 438
Note :- Muffler Not Supplied with engine - Can be supplied at additional cost (Available on our Accessories Page)
