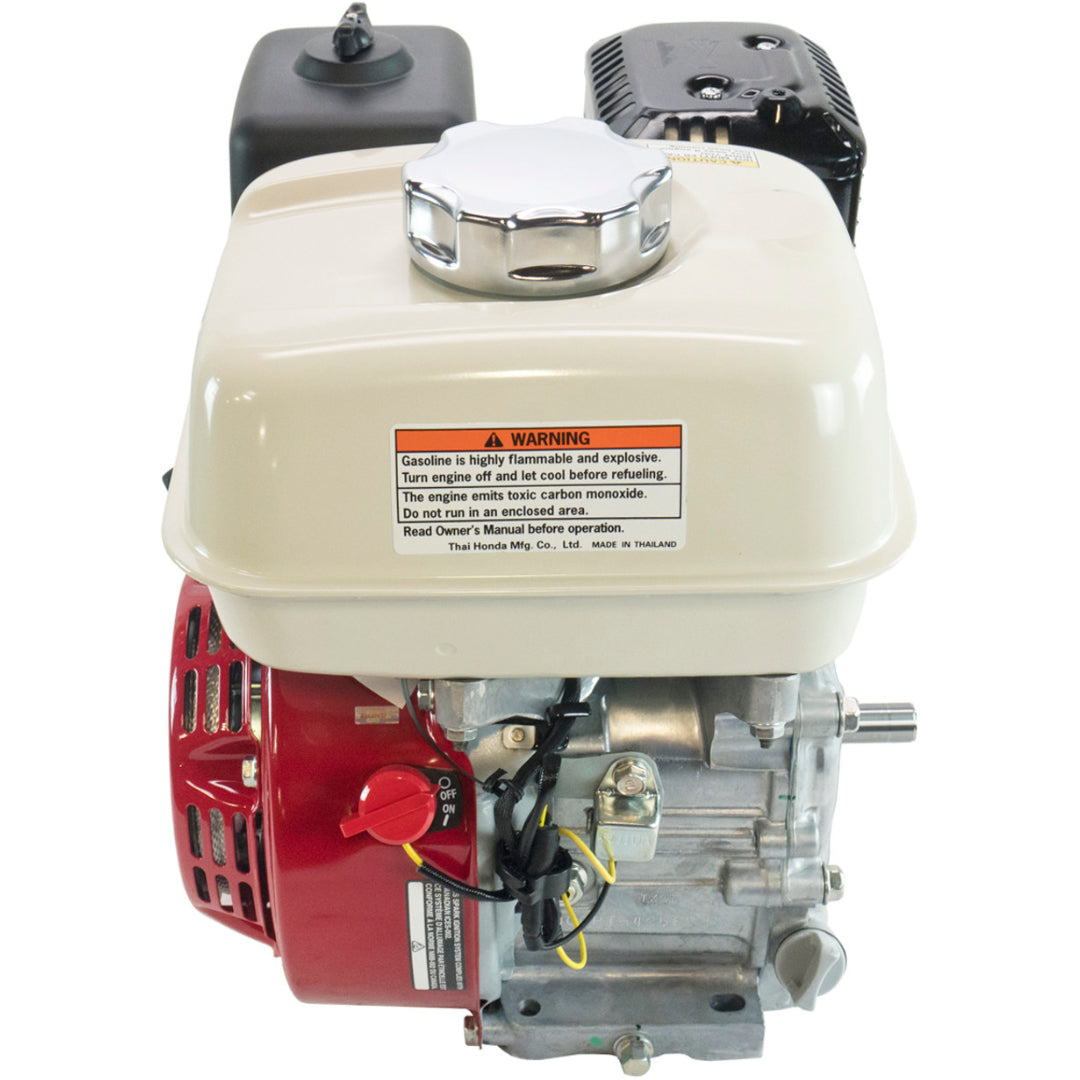

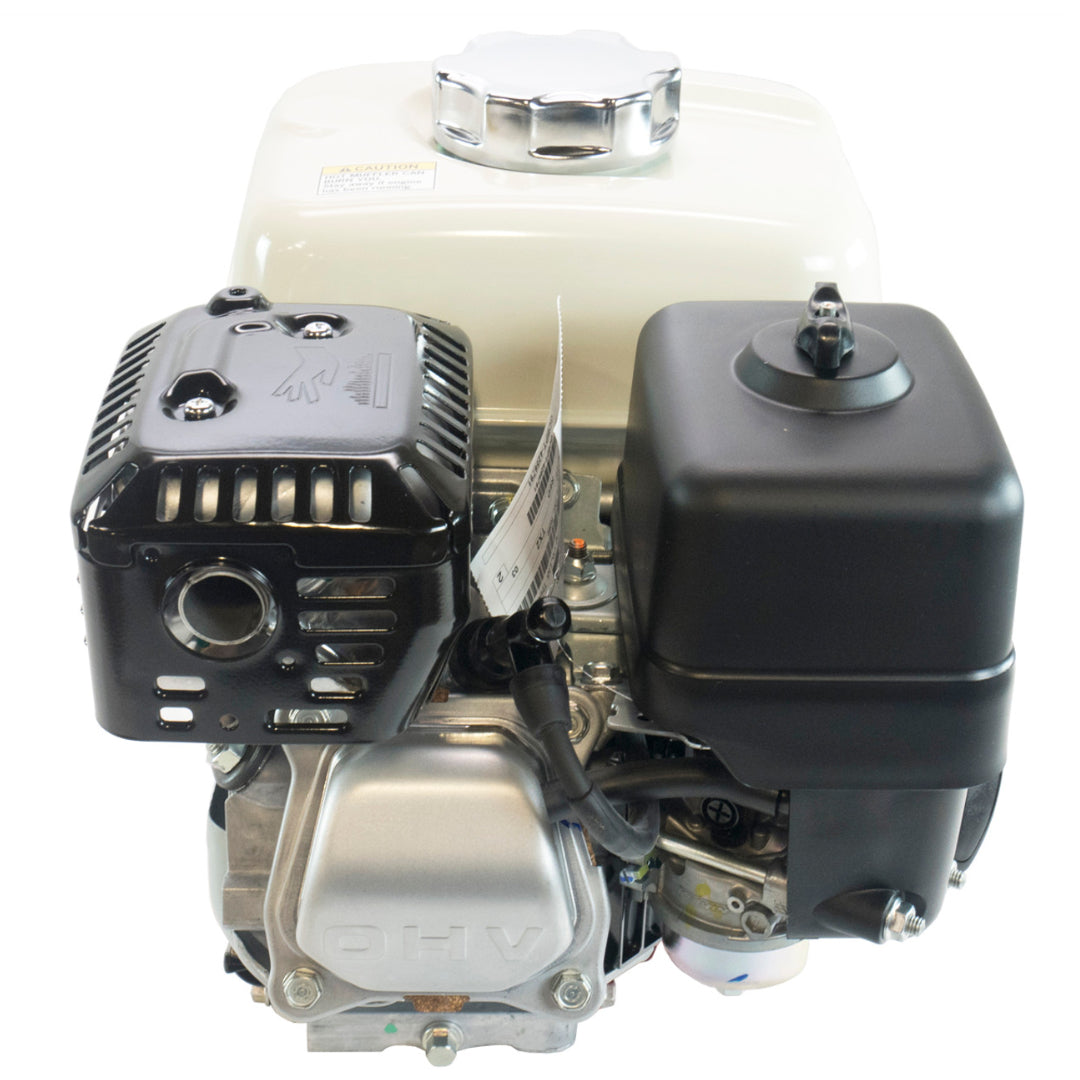

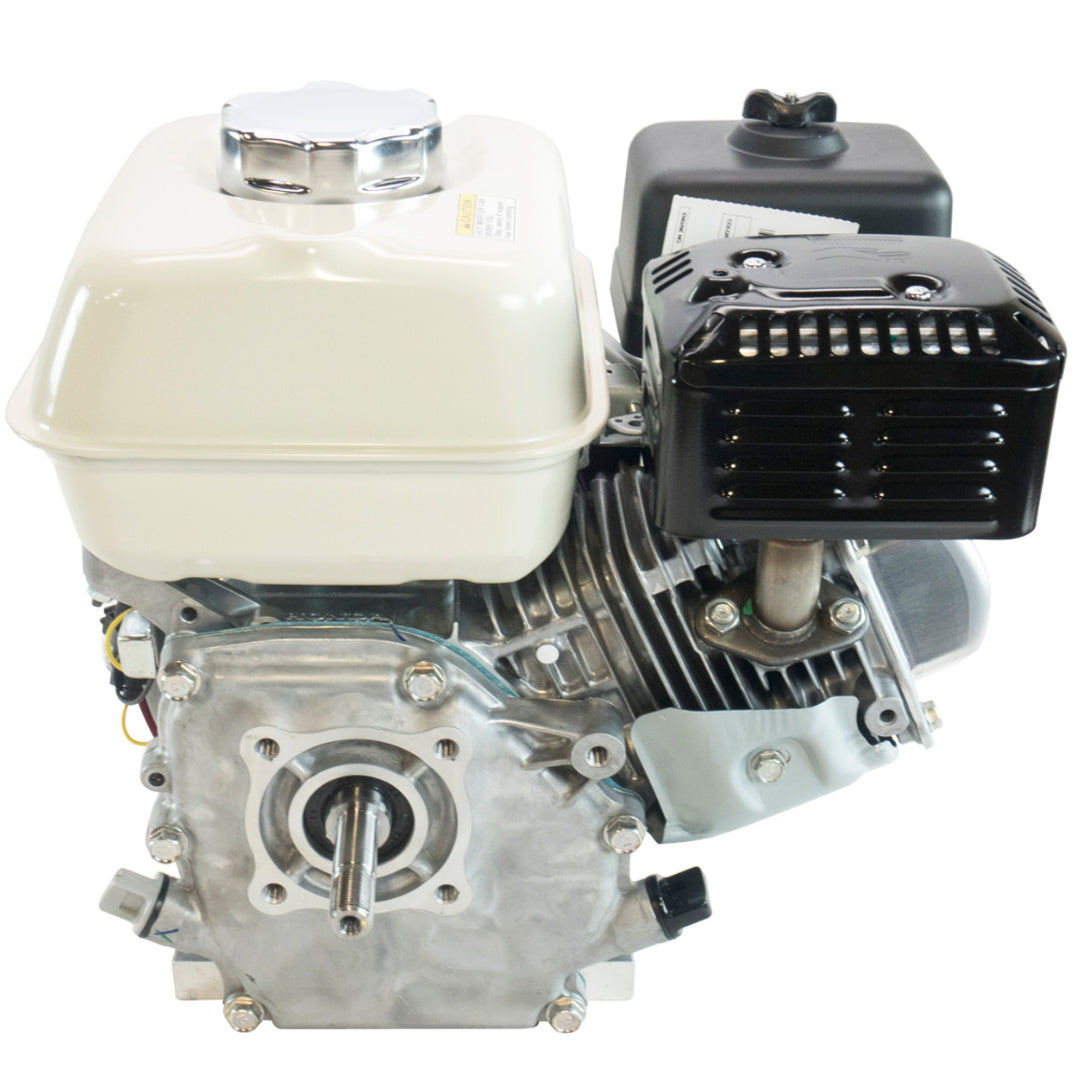

Honda GX120 3.5HP Petrol Engine (GX Series)
Honda GX120 3.5HP Petrol Engine (GX Series) - QX - 3/4 Inch Keyway is backordered and will ship as soon as it is back in stock.
Replacement Engine Tips
Replacement Engine Tips
Try to match the engine Horsepower (CC), Shaft Diameter & Length, Fuel Tank & Muffler location to the engine being replaced.
Delivery and Shipping
Delivery and Shipping
We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.
The GX120 engine is frequently used by customers in commercial lawn and garden equipment.It’s also used to power Construction/Industrial Equipment, as well as in Agricultural settings – including the powering of Water Pumps.The GX120’s Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.And the GX120 incorporates a high compression ratio for better fuel efficiency than its competitors. The GX120, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.That 3 years is relevant to both Domestic and Commercial applications, so you can rest assured with the knowledge that your GX120 is built to last.
Specifications
- Engine Type 4-stroke, overhead valve, single-cylinder
- Displacement (cc) 118
- Starter Type Recoil / Pull Start
- Horsepower Class (hp) 4
- Fuel Type Unleaded
- Fuel Tank Capacity (Ltrs) 2.0
- Oil Alert System Yes
- Dimensions LxWxH (mm) 305 x 341 x 318
- Dry Weight (kg) 15
- Various Shaft Options & Reduction options available as per below

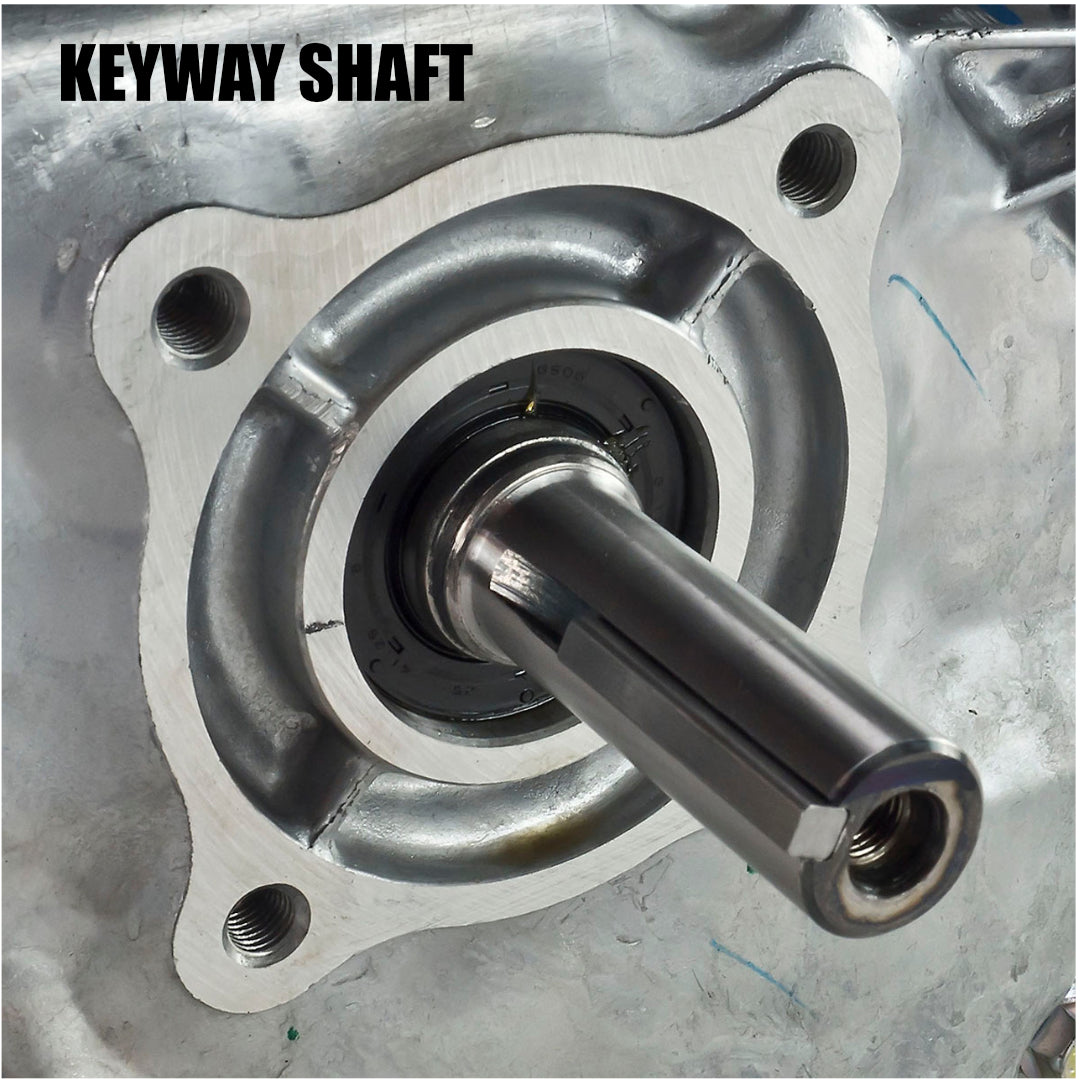

- QX Keyway Shaft - 19ml (3/4") Diameter x 61.7mm Long
- LX - 2:1 Reduction Drive / 18mm Diameter Keyway Shaft
-

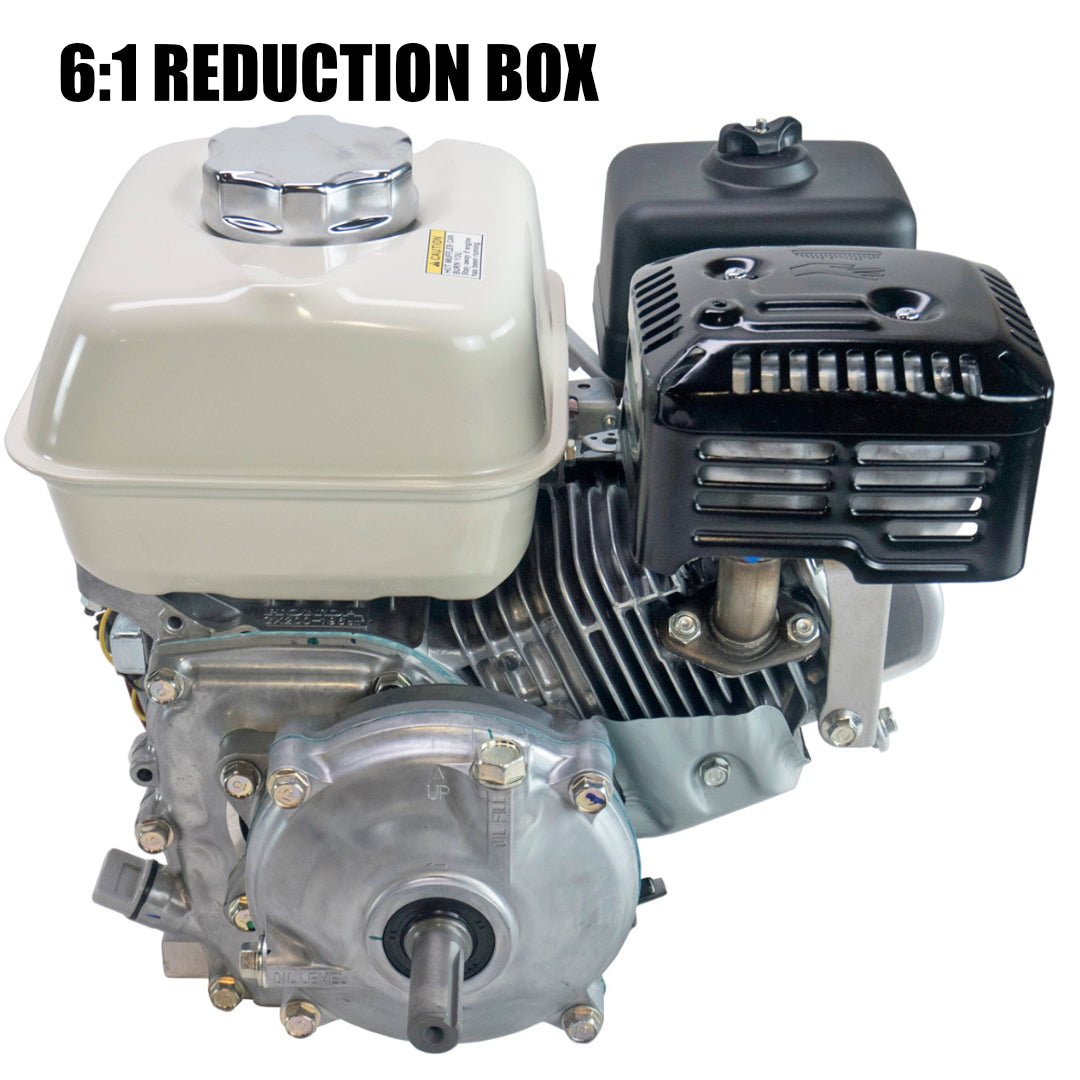

HX - 6:1 Reduction Box / 19ml (3/4") Diameter Keyway Shaft
