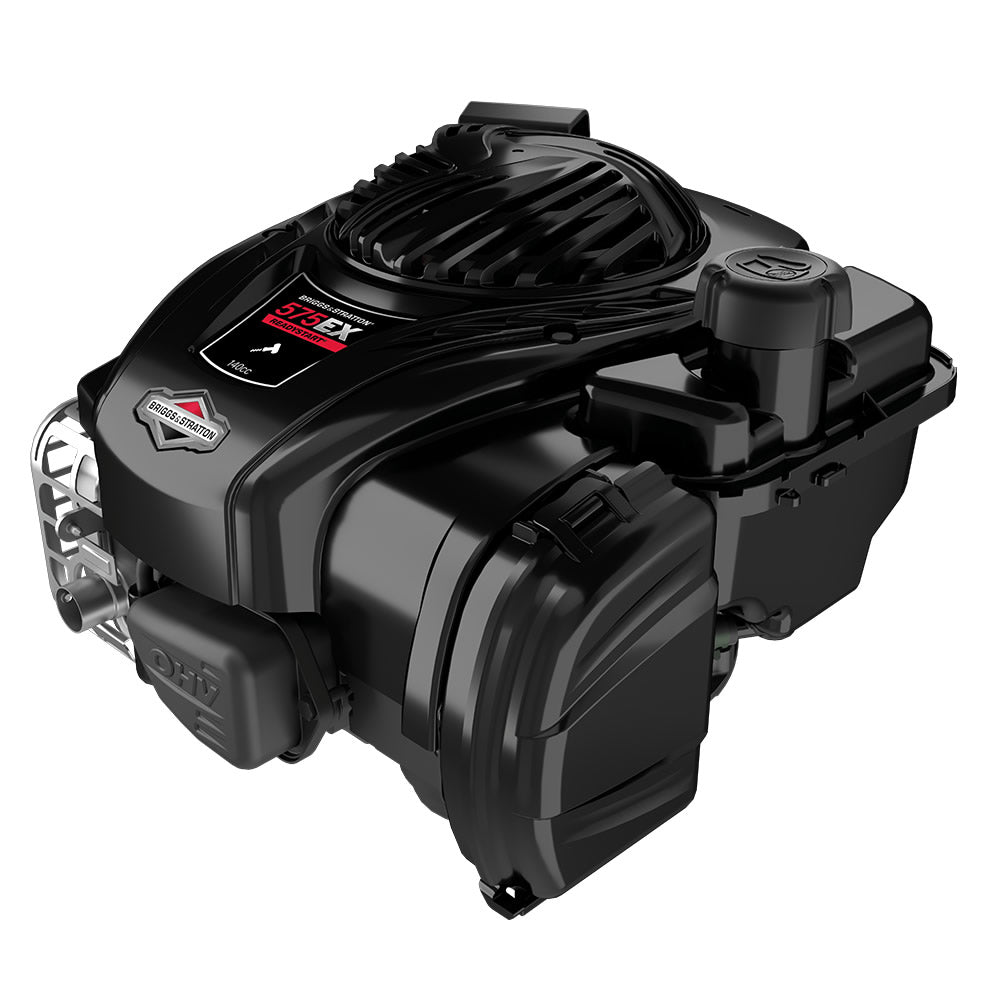

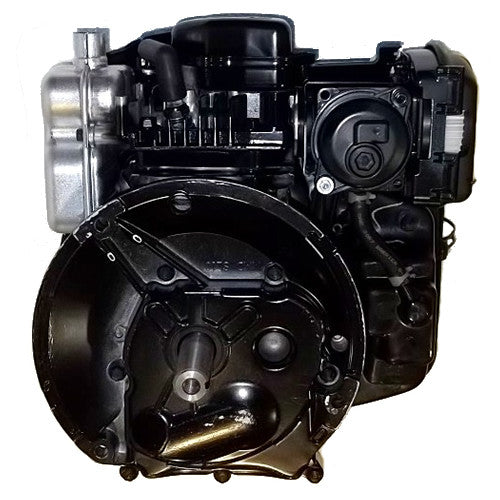

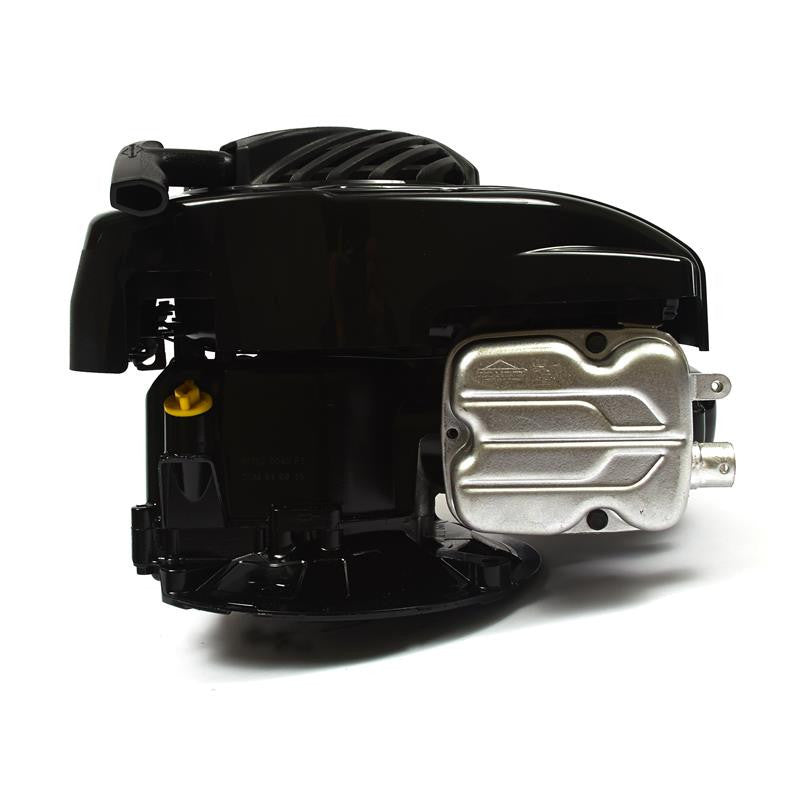

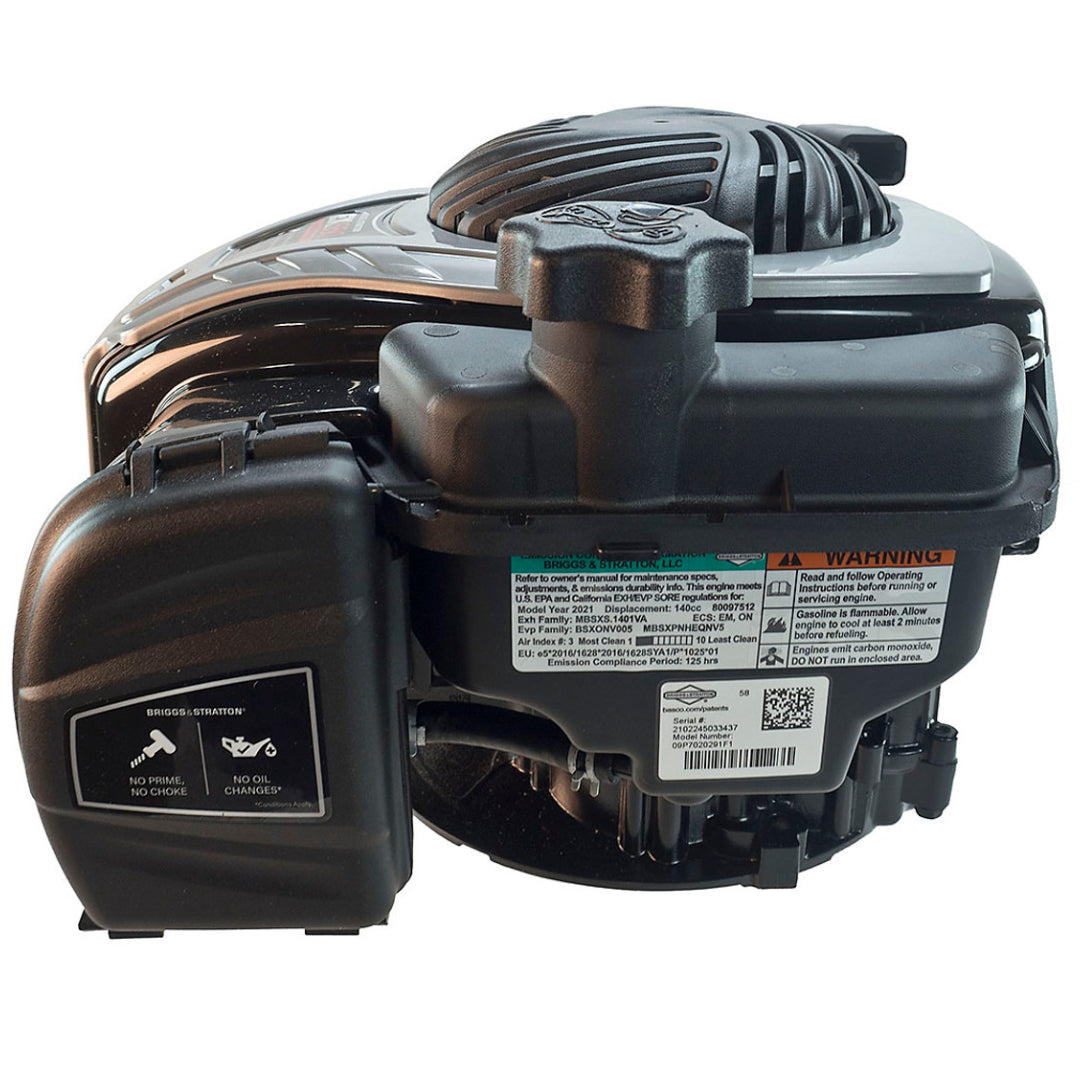

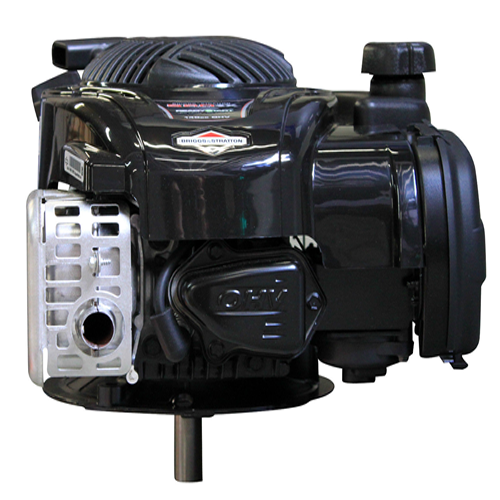

Briggs & Stratton 3.75hp (550EX Series) Lawnmower Engine
Briggs & Stratton 3.75hp (550EX Series) Lawnmower Engine - 7/8 Diameter - 50ML Long is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.
Briggs & Stratton 3.75hp (550EX Series) Lawnmower Engine
Description
Performance and value in one unbeatable package. You’ll love the smooth handling of the lightweight, yet powerful 550ex Series™ lawn mower engine.With a best-in-class torque-to-weight ratio, reduced vibration and quieter operation, you can give your lawn a class-A cut with ease. 550ex push mower engines come standard with Super Lo-Tone™ muffler and hassle-free ReadyStart® starting system.
Typical Applications :- This Briggs & Stratton 3.75HP engine is a ideal replacement engine for Rover, Masport, Supaswift and Victa lawn mowers. It is the direct replacement for all previous Briggs & Stratton 'Classic' and 'Sprint' and 450 Series models.
Key Features
- DuraLube Splash Lubrication
- Briggs Model 09P702
- Engineering for comfort & maneuverability
- Dirt & Debris protection w/ tool less air cleaner
- Magnetron Electronic Ignition System
- Over Head Valve Engine (OHV)
- Super Lo tone Engine Muffler
- Fixed speed control
- Compact & Lightweight
- 140 cc
- Shaft Options of 70ml long or 50 ml long

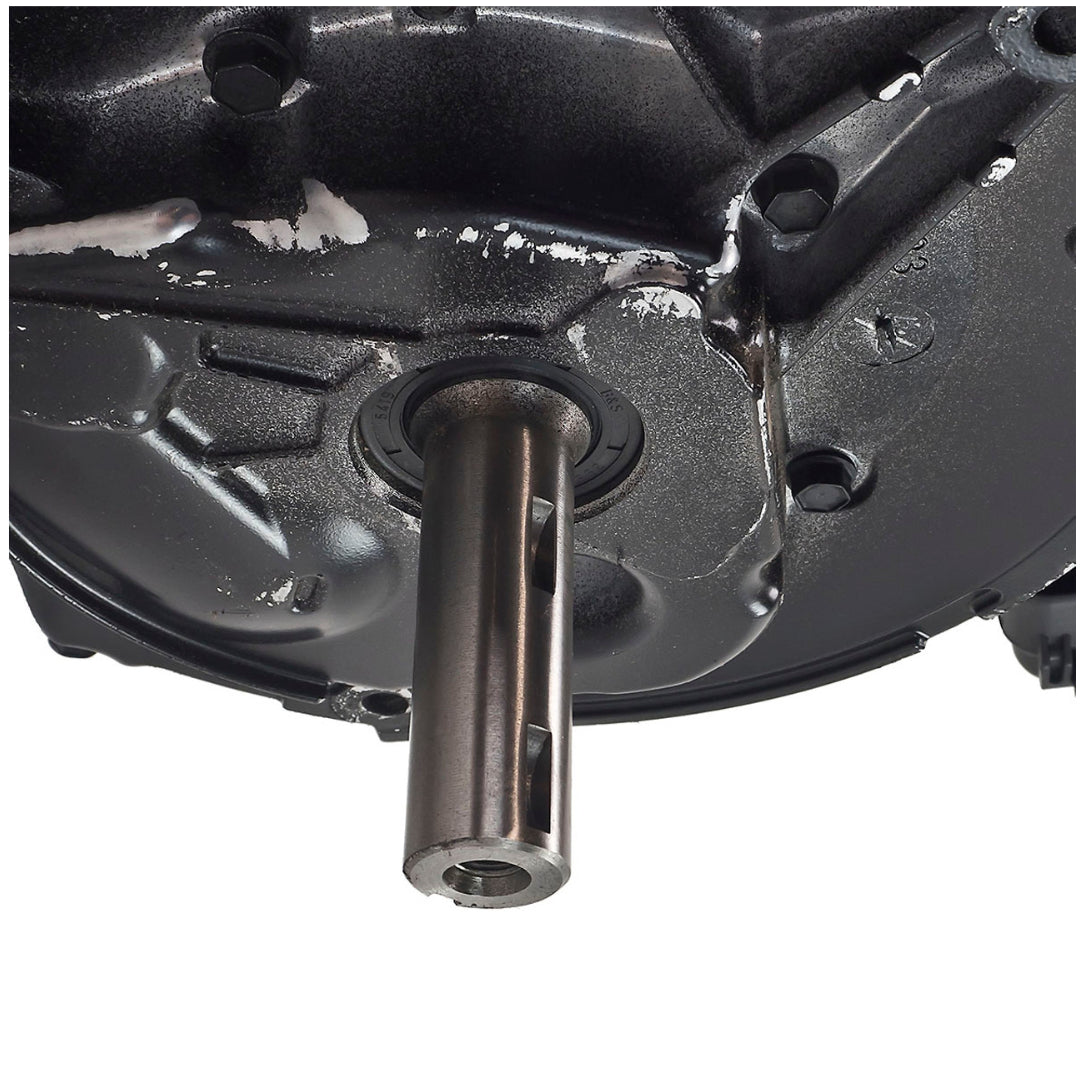

- 7/8 Inch Diameter Vertical Shaft
- 13.8 (in) x 12.2 (in) x 9.6 (in) (LxWxH)
- 1 Year Warranty - Australia Wide
Specifications
|
Engine Series |
Briggs & Stratton EX Series |
|
Engine Style |
Vertical |
|
Cylinders |
1 |
|
Engine Type |
4 Cycle OHV |
|
Cooling System |
Air |
|
Dry Weight |
17 Lbs |
|
Engine CC |
140cc |
|
Engine HP |
3.75hp |
|
Cylinder Bore Type |
Aluminium |
|
Bore |
2.50 inches |
|
Stroke |
1.75 inches |
|
Starting System |
Recoil Only |
|
Ignition System |
Electronic Spark |
|
Oil Filter |
No |
|
Oil capacity |
16 oz |
|
Muffler |
Included |
|
Air Cleaner |
Foam |
|
Fuel Tank |
Included |
|
Crankshaft Rotation |
Counterclockwise |
|
Shaft Size |
7/8 x 70ml or 7/8 x 50ml |
|
Crankshaft Type |
Straight Keyway |
|
Crankshaft Diameter |
7/8 |
|
Crankshaft Length |
70ml or 50ml |
|
Crankshaft End Tapped Size |
3/8-24 |
|
Crankshaft Keyway Width |
3/16 Inch |
|
Warranty |
1 Years |
|
Dimensions |
13.8 (in) x 12.2 (in) x 9.6 (in) (LxWxH) |
