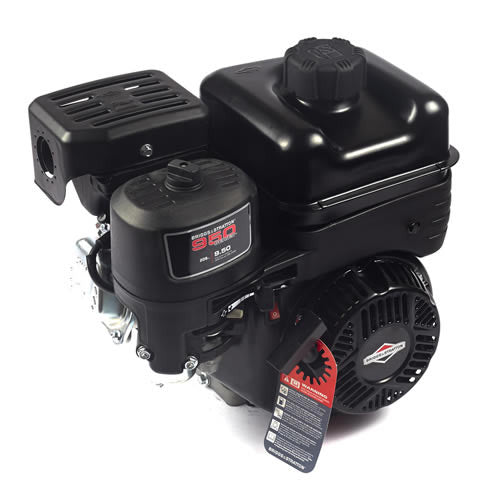

Briggs & Stratton 6.5HP OHV Petrol Engine (950 Series)
Description
This Briggs & Stratton 950 Series Horizontal OHV Engine produces 9.50 ft-lbs. of gross torque to get the job done. Standard shaft is designed for general use. Compact OHV design runs cooler and cleaner, delivering more power, longer engine life and improved fuel economy. High-flow cylinder head produces 20% more power than conventional engines, increases fuel efficiency and significantly reduces emissions. This engine has fast fuel delivery for one-pull starts and smooth operation.
Specifications
- Splash Lubrication System
- Premuim style air filter
- Cast Iron Cylinder Sleeve
- Over Head Valve Engine (OHV)
- Float Feed Carburetor
- Shaft Options :- 3/4 Dia. Keyway Shaft or 5/8 Threaded Pump Shaft
- Compact Design
- Model 130G32
- 2 Year Warranty - Australia Wide
- Dual Ball Bearing
- Magnetron Electronic Ignition
- Fuel Shutoff Valve
- 7 3/8" x 4 " Mounting Base Dimensions
Specifications
|
Engine Series |
Briggs & Stratton 950 Series |
|
Engine Style |
Horizontal |
|
Cylinders |
1 |
|
Engine Type |
4 Cycle OHV |
|
Cooling System |
Air |
|
Dry Weight |
34 Lbs |
|
Engine CC |
208cc |
|
Engine HP |
6.5hp |
|
Cylinder Bore Type |
Cast Iron Sleeve |
|
Bore |
2.75 inches |
|
Stroke |
2.12 inches |
|
Starting System |
Recoil start |
|
Ignition System |
Electronic Spark |
|
Oil Filter |
No |
|
Oil capacity |
1/16 qt |
|
Muffler |
Included |
|
Air Cleaner |
Dual Element |
|
Fuel Tank |
Included |
|
Crankshaft Rotation |
Counterclockwise |
|
Shaft Size |
3/4 x 2-27/64 Inch |
|
Crankshaft Type |
Straight Keyway |
|
Crankshaft Diameter |
3/4 Inch Keyway |
|
Crankshaft Length |
2-27/364" |
|
Crankshaft End Tapped Size |
5/16-24 |
|
Crankshaft Keyway Width |
3/16 Inch |
|
Warranty |
2 Years |
|
Dimensions |
409 x 270 x 356 mm (LxWxH) |
