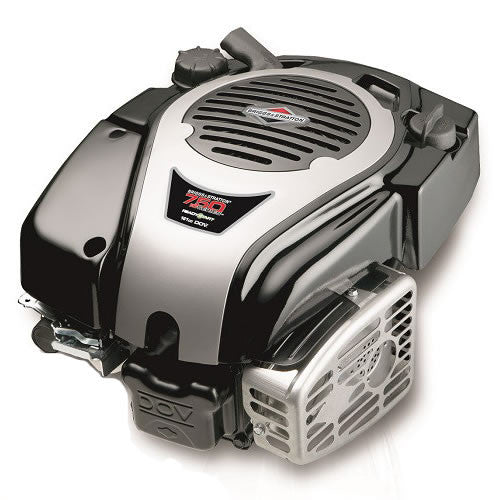

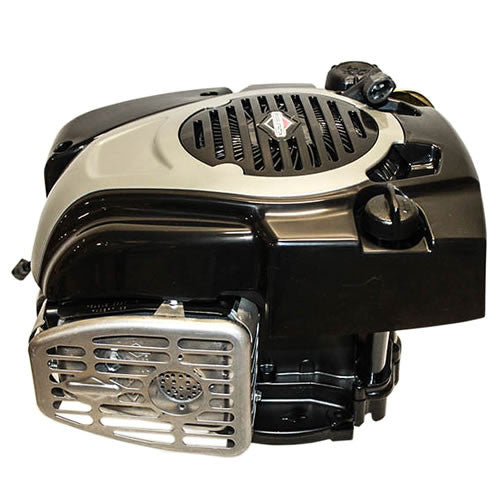

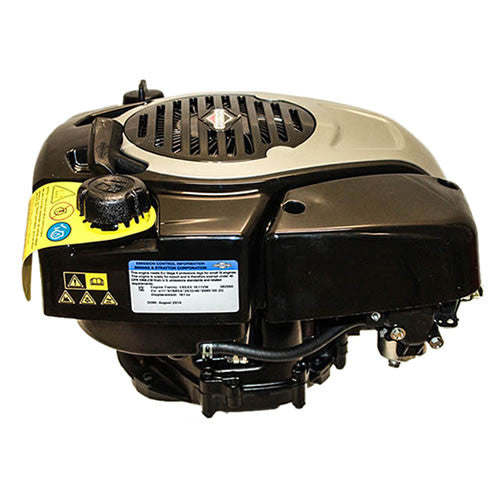

Briggs & Stratton 5.5hp (750EX I/C Series) Lawnmower Engine

$470.00

Shaft Options

Delivery and Shipping

We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.

Description

The 750EX SERIES™ DOV® engine delivers breakthrough performance driven by technology that makes a difference you can SEE, FEEL and HEAR. The patented Direct Overhead Valve (DOV®) engine delivers more torque, improved sound quality, and less noise and vibration than competitive engines in the same class. The 750EX SERIES engines are ideal to power lawnmowers for gardens up to 1500 square meters.

Specifications

  • Model - 100802
  • Gross Torque - 9.8Nm
  • Displacement cc - 161
  • Cylinder - Cast Iron
  • Bore & Stroke - 64.0 x 50.0
  • Fuel Tank Capacity - 1 Litre
  • Oil Capacity - 0.6 Litre
  • Dry Weight - 11.1kgs
  • Dimensions - 369 x 325 x 254mm
  • Features  - DOV Technology, ReadyStart, Mechanical Governor, Performance Muffler, High Oil Fill Tube, Paper Air Filter (Oval)

Specifications

Engine Series

Briggs & Stratton 750EX Series

Engine Style

Vertical

Cylinders

1

Engine Type

4 Cycle OHV

Cooling System

Air

Dry Weight

11.1 kg

Engine CC

161 cc

Engine HP

5.5HP

Cylinder Bore Type

Cast Iron

Bore

64mm

Stroke

50mm

Starting System

Recoil

Ignition System

Electronic Spark

Oil Filter

No

Oil capacity

0.6 ltr

Muffler

Lo Tone Muffler

Air Cleaner

Dry Paper

Fuel Tank

1 ltr

Crankshaft Rotation

Counter Clockwise

Shaft Size

Three Options: 7/8 x 50mm or 7/8 x 70mm or 25mm x 70mm

Crankshaft Type

Straight Keyway

Crankshaft Diameter

7/8 or 25mm

Crankshaft Length

50mm or 70mm

Crankshaft End Tapped Size

Various

Crankshaft Keyway Width

Various

Warranty

2 Years

Dimensions

369 x 325 x 254 mm (LxWxH)

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Briggs & Stratton

Briggs & Stratton 5.5hp (750EX I/C Series) Lawnmower Engine

$470.00

Description

The 750EX SERIES™ DOV® engine delivers breakthrough performance driven by technology that makes a difference you can SEE, FEEL and HEAR. The patented Direct Overhead Valve (DOV®) engine delivers more torque, improved sound quality, and less noise and vibration than competitive engines in the same class. The 750EX SERIES engines are ideal to power lawnmowers for gardens up to 1500 square meters.

Specifications

Specifications

Engine Series

Briggs & Stratton 750EX Series

Engine Style

Vertical

Cylinders

1

Engine Type

4 Cycle OHV

Cooling System

Air

Dry Weight

11.1 kg

Engine CC

161 cc

Engine HP

5.5HP

Cylinder Bore Type

Cast Iron

Bore

64mm

Stroke

50mm

Starting System

Recoil

Ignition System

Electronic Spark

Oil Filter

No

Oil capacity

0.6 ltr

Muffler

Lo Tone Muffler

Air Cleaner

Dry Paper

Fuel Tank

1 ltr

Crankshaft Rotation

Counter Clockwise

Shaft Size

Three Options: 7/8 x 50mm or 7/8 x 70mm or 25mm x 70mm

Crankshaft Type

Straight Keyway

Crankshaft Diameter

7/8 or 25mm

Crankshaft Length

50mm or 70mm

Crankshaft End Tapped Size

Various

Crankshaft Keyway Width

Various

Warranty

2 Years

Dimensions

369 x 325 x 254 mm (LxWxH)

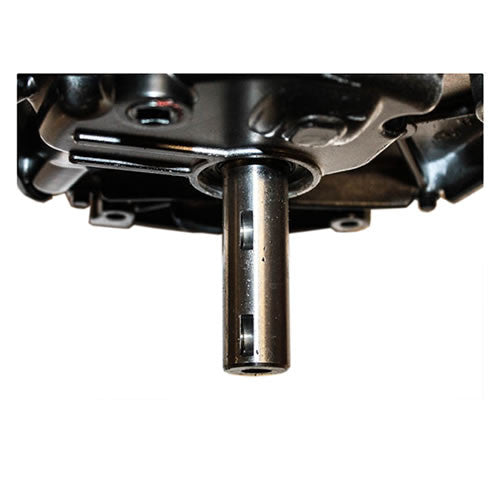

Shaft Options
