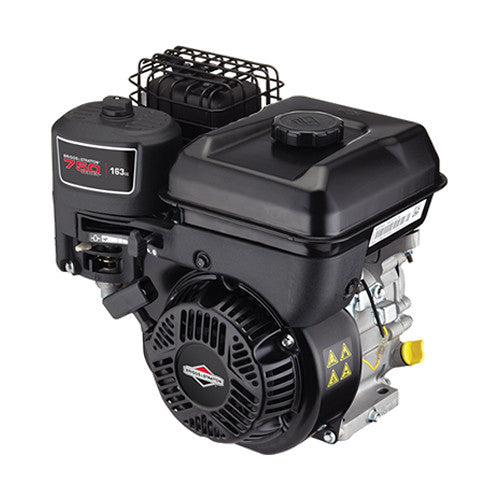

Briggs & Stratton 5.0HP OHV Petrol Engine (XR Pro Series)

$450.00

SHAFT OPTIONS

Product variants

Replacement Engine Tips

Try to match the engine Horsepower (CC), Shaft Diameter & Length, Fuel Tank & Muffler location to the engine being replaced.

Delivery and Shipping

We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.

Description

This Briggs & Stratton XR Pro series is a powerful 5.0hp petrol engine which utilities (OHV) overhead valve design technology. It features an automotive style air filter, cast iron cylinder sleeve, and dual bearings for longer life. This Briggs & Stratton has a great reputation for easy starting and great reliability.

Typical Applications :- This Briggs & Stratton 5.0hp petrol engine is a ideal replacement engine for most reel mowers on the market, other applications are cement mixes, tillers etc

Specifications

Splash Lubrication System
Automotive style air filter
Cast Iron Cylinder Sleeve
Over Head Valve Engine (OHV)
Dual Ball Bearings

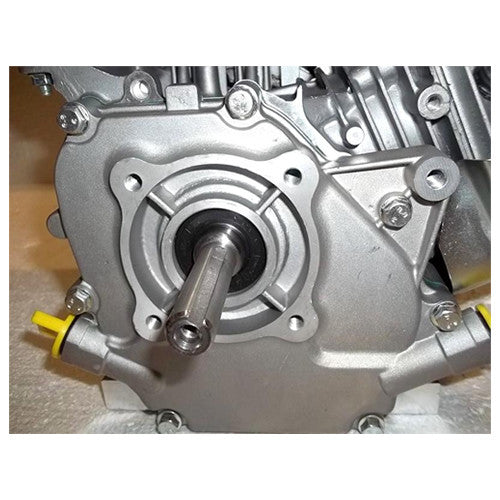

Shaft Options :- 3/4 Diamater Keyway Shaft or Tapered for a generator
Compact Design
Model 106232
2 Year Warranty - Australia Wide

Specifications

Engine Series	Briggs & Stratton XR Pro Series
Engine Style	Horizontal
Cylinders	1
Engine Type	4 Cycle OHV
Cooling System	Air
Dry Weight	13.2 kg
Engine CC	163 cc
Engine HP	5HP
Cylinder Bore Type	Cast Iron
Bore	68mm
Stroke	45mm
Starting System	Recoil Start
Ignition System	Electronic Spark
Oil Filter	No
Oil capacity	0.61 ltr
Muffler	Included
Air Cleaner	Dual Element
Fuel Tank	3.3 ltr
Crankshaft Rotation	Counter Clockwise
Shaft Size	3/4 Keyway or Tapered
Crankshaft Type	Keyway or Tapered
Crankshaft Diameter	3/4
Crankshaft Length	2" 27/64
Crankshaft End Tapped Size	Various
Crankshaft Keyway Width	3/16
Warranty	2 Years
Dimensions	364 x 385 x 325 mm (LxWxH)
