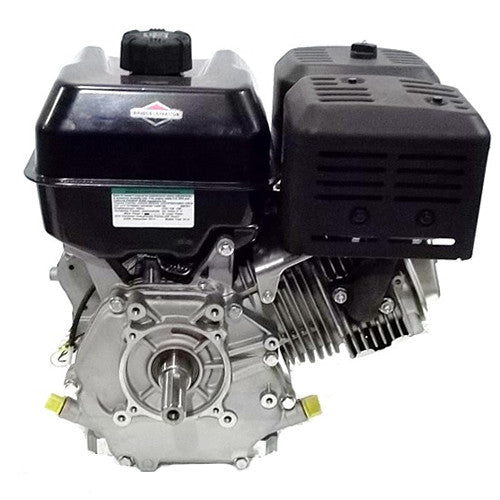

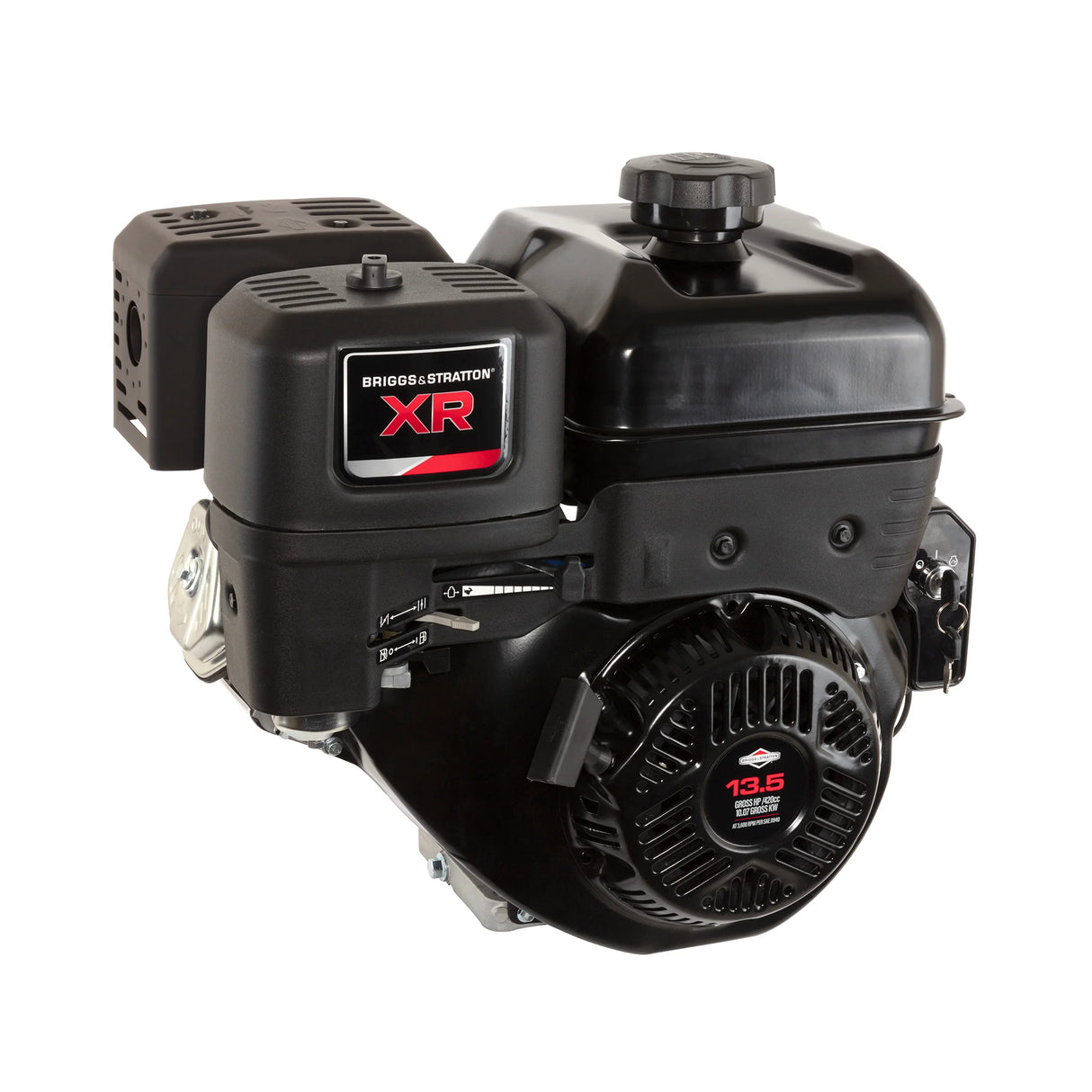

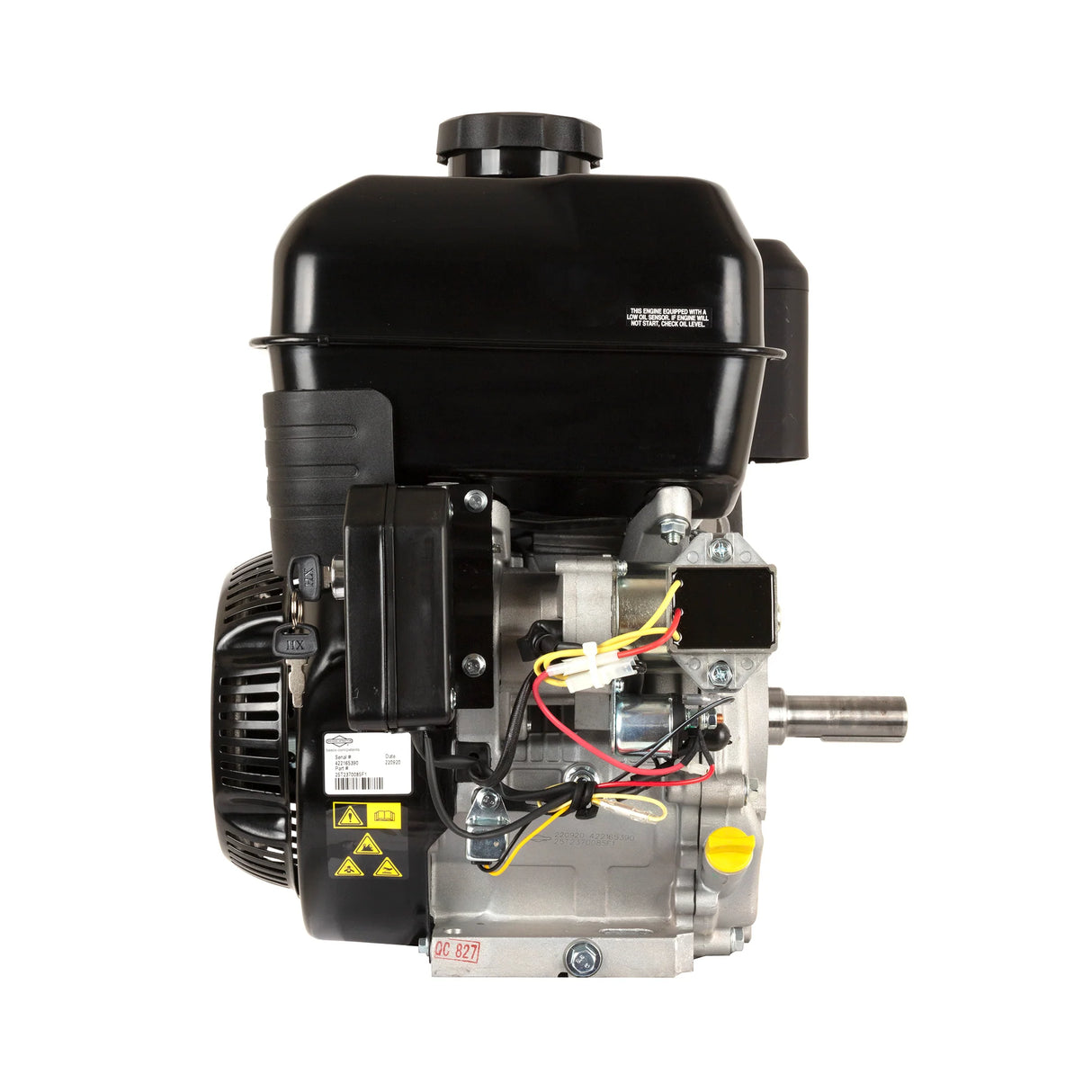

Briggs & Stratton 13.5HP OHV Petrol Engine (I/C Series)
Briggs & Stratton 13.5HP OHV Petrol Engine (I/C Series) - Electric Start is backordered and will ship as soon as it is back in stock.
Replacement Engine Tips
Replacement Engine Tips
Try to match the engine Horsepower (CC), Shaft Diameter & Length, Fuel Tank & Muffler location to the engine being replaced.
Delivery and Shipping
Delivery and Shipping
We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.
Description
The Briggs & Stratton I/C Series Horizontal OHV Engine provides easy starting with OHV for greater durability and reduced emissions. Includes a Maxi-Clean™ air filter and a Super Lo-Tone™ muffler. Standard keyway shaft is designed for general use. Compact OHV design runs cooler and cleaner, delivering more power, longer engine life and improved fuel economy. High-flow cylinder head produces 20% more power than conventional engines, increases fuel efficiency and significantly reduces emissions. This engine has fast fuel delivery for one-pull starts and smooth operation.
Specifications
- Overhead valve design runs cooler and cleaner, delivering more power, longer engine life and improved fuel economy
- Aluminized Super Lo-Tone muffler resists corrosion for longer life and provides exceptionally quiet operation
- Dual ball bearings reduce wear for longer life
- Dura-Bore™ cast iron cylinder sleeve withstands wear and abuse while providing improved oil control
- DuraLube™ gear-driven splash lubrication system continuously supplies oil to all internal parts
- Flat panel pleated automotive-type air filter for superior engine protection
- Rewind starter delivers quick, dependable starts with no maintenance required
- Cast Iron Cylinder Sleeve
- 1 inch Diameter Keyway Shaft
- Model 25T237
- 2 Year Warranty - Australia Wide
Specifications
|
Engine Series |
Briggs & Stratton 2100 Series |
|
Engine Style |
Horizontal |
|
Cylinders |
1 |
|
Engine Type |
4 Cycle OHV |
|
Cooling System |
Air |
|
Dry Weight |
31kg |
|
Engine CC |
420 cc |
|
Engine HP |
13.5HP |
|
Cylinder Bore Type |
Cast Iron |
|
Bore |
90 mm |
|
Stroke |
66 mm |
|
Starting System |
Recoil & Electric |
|
Ignition System |
Electronic Spark |
|
Oil Filter |
No |
|
Oil capacity |
1.1 ltr |
|
Muffler |
Included |
|
Air Cleaner |
Dual Element |
|
Fuel Tank |
6.6 ltrs |
|
Crankshaft Rotation |
Counter Clockwise |
|
Shaft Size |
1 Inch x 3" 5/32 |
|
Crankshaft Type |
Keyway |
|
Crankshaft Diameter |
1 Inch |
|
Crankshaft Length |
3" 5/32 |
|
Crankshaft End Tapped Size |
7 - 16/20 |
|
Crankshaft Keyway Width |
1/4 |
|
Warranty |
2 Years |
|
Dimensions |
405 x 450 x 457 mm (LxWxH) |
