Description

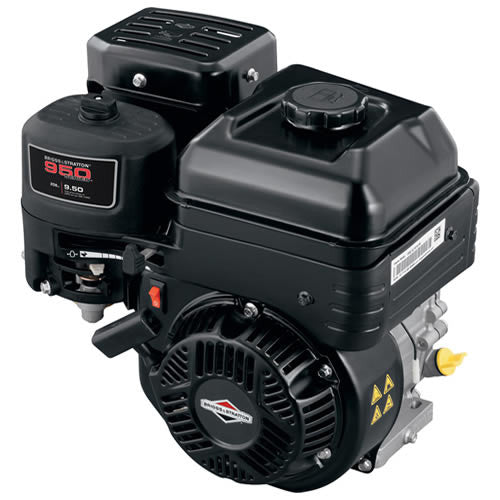

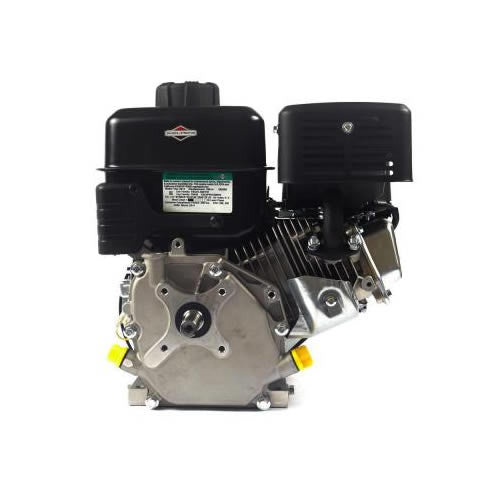

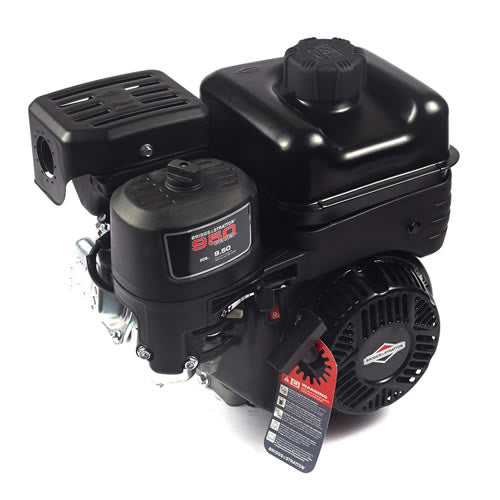

This Briggs & Stratton 950 Series Horizontal OHV Engine produces 9.50 ft-lbs. of gross torque to get the job done. Standard shaft is designed for general use. Compact OHV design runs cooler and cleaner, delivering more power, longer engine life and improved fuel economy. High-flow cylinder head produces 20% more power than conventional engines, increases fuel efficiency and significantly reduces emissions. This engine has fast fuel delivery for one-pull starts and smooth operation.

Specifications

  • Splash Lubrication System
  • Premuim style air filter
  • Cast Iron Cylinder Sleeve
  • Over Head Valve Engine (OHV)
  • Float Feed Carburetor
  • Shaft Options :- 3/4 Dia. Keyway Shaft or 5/8 Threaded Pump Shaft
  • Compact Design
  • Model 130G32
  • 2 Year Warranty - Australia Wide
  • Dual Ball Bearing
  • Magnetron Electronic Ignition
  • Fuel Shutoff Valve
  • 7 3/8" x 4 " Mounting Base Dimensions

Specifications

Engine Series

Briggs & Stratton 950 Series

Engine Style

Horizontal

Cylinders

1

Engine Type

4 Cycle OHV

Cooling System

Air

Dry Weight

34 Lbs

Engine CC

208cc

Engine HP

6.5hp

Cylinder Bore Type

Cast Iron Sleeve

Bore

2.75 inches

Stroke

2.12 inches

Starting System

Recoil start

Ignition System

Electronic Spark

Oil Filter

No

Oil capacity

1/16 qt

Muffler

Included

Air Cleaner

Dual Element

Fuel Tank

Included

Crankshaft Rotation

Counterclockwise

Shaft Size

3/4 x 2-27/64 Inch

Crankshaft Type

Straight Keyway

Crankshaft Diameter

3/4 Inch Keyway

Crankshaft Length

2-27/364"

Crankshaft End Tapped Size

5/16-24

Crankshaft Keyway Width

3/16 Inch

Warranty

2 Years

Dimensions

10.25 (in) x 14.3 (in) x 14.5 (in) (LxWxH)

Customer Questions

Ask Question
0
Q: can i use this for a diy go kart and does it have electric start

A: Briggs & Stratton does not approve or authorize the use of these engines on Go Karts, motorbikes or ATV's.
